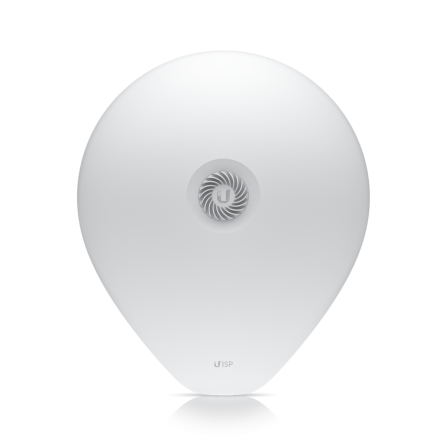

Ubiquiti AF60-XG-US PtP 60 GHz (1) GbE and (1) 10G SFP+ Ports 6 Gbps Max. GPS & Bluetooth

4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.

4+ km link range

6 Gbps max. throughput

5 GHz 800+ Mbps weather-resilient backup radio

(1) GbE and (1) 10G SFP+ port

Precision alignment mount

Integrated GPS & Bluetooth

Terragraph Certified

Specifications:

• Dimensions: 779 x 664 x 383 mm (30.68 x 26.14 x 15.06")

• Weight: Without mount: 8.6 kg (19 lb)

• With mount: 13 kg (28.7 lb)

• Enclosure material: UV stabilized polycarbonate, steel

• Mount material: Galvanized steel

• Mounting: Precision alignment kit (included)

• Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15")

• Wind loading: 422 N at 200 km/h (94.86 lbf at 125 mph)

Hardware

• Processor: Quad-Core ARM® Cortex® A72 at 1.6 GHz

• Memory: 2 GB DDR4

• Networking interface: (1) GbE RJ45 port / (1) 1/10G SFP+ port

• Max. power consumption: 31.2W

• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

• Power supply: 48V DC, 0.65A Gigabit PoE adapter (Included)

• Supported voltage range: 44–54V DC / 22–27V DC

• GPS: Yes

• RF connections: Internal

• Button: Factory reset

• Ambient operating temperature: -40 to 55° C (-40 to 131° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: FCC, IC, CE, terragraph

Software

• Operating mode: PtP only

• Services: UISP, ping watchdog, NTP client, system log

• Utilities: Antenna alignment tool, discovery utility, ping, speed test

• Management application: UISP web: Version 1.4.3 and later

• UISP: iOS™ and Android™: Version 2.19 and later

System

• Max. throughput: 5 GHz: 866.6 Mbps / 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)

• Max. range: 4 km

• Encryption: WPA2-PSK (AES)

RF

• Operating frequency*: 57–66 GHz

* Depends on regulatory region.

• Channel bandwidth: 2160 MHz/4320 MHz (With channel bonding enabled)

• Operating channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*

*Depends on the channel bandwidth.

• Polarization: Vertically linear

• Beamwidth: Azimuth: 3 dB 1.6°

• Elevation: 3 dB 1.6°

Back-Up RF

• Operating frequency*     US/CA: U-NII-1 5150 - 5250 MHz

U-NII-3 5725 - 5850 MHz

• Worldwide 5150–5875 MHz

*Depends on regulatory region.

• Channel bandwidth: 20/40/80 MHz

• Polarization: Dual-linear

• Beamwidth: Azimuth: 3 dB 5° / Elevation: 3 dB 5°

LEDs

• Power: Flashing white: bootup in progress

White: not connected to UISP™ console

Blue: connected to UISP console

• Ethernet: Flashing blue: ethernet activity

• GPS Blue: receiving at least (4) GPS satellite signals

• 60G Blue: active connection

• 5G Blue: active connection
