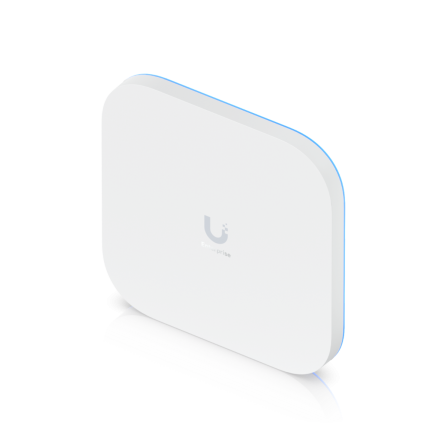

Ubiquiti E7-US AP WiFi 7 6 / 5 / 2.4 GHz.

Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

Specifications:

• Dimensions: 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7")

• WiFi Standard: WiFi 7

• Spatial Streams: 10

• Coverage Area: 185 m² (2,000 ft²)

• Max. Client Count: 1000+

• Uplink: 10 GbE / 1 GbE

• Mounting Locations: Ceiling, wall

• Mounting Plate: Pro mounting plate (Included) / VESA mount

• Power Method: PoE++

Performance

• MIMO:

6 GHz 4 x 4 (DL/UL MU-MIMO)

5 GHz 4 x 4 (DL/UL MU-MIMO)

2.4 GHz 2 x 2 (DL/UL MU-MIMO)

• Max. Data Rate:

6 GHz 11.5 Gbps (BW320)

5 GHz 8.6 Gbps (BW240)

2.4 GHz 688 Mbps (BW40)

• Antenna Gain:

6 GHz 6 dBi

5 GHz 6 dBi

2.4 GHz 5 dBi

• Max. TX Power

6 GHz 24 dBm / 30 dBm

5 GHz 30 dBm

2.4 GHz 23 dBm

• Max. BSSIDs: 8 per Radio

• Supported Data Rates

802.11be (WiFi 7) 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)

802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

• Wireless Meshing: Yes

• Band Steering: Yes

• 802.11v BSS Transition Management: Yes

• 802.11r Fast Roaming: Yes

• 802.11k Radio Resource Management (RRM): Yes

• Zero-Wait DFS: Yes

• Advanced Radio Management: Yes

• Passpoint (Hotspot 2.0): Yes

• Captive Hotspot Portal

• Custom Branding Landing Page: Yes

• Voucher Authentication: Yes

• Payment-Based Authentication: Yes

• External Portal Server Support: Yes

• Password Authentication: Yes

• Guest Network Isolation: Yes

• Private Pre-Shared Key (PPSK): Yes

• WiFi Speed Limiting: Yes

• Client Device Isolation: Yes

• WiFi Schedules: Yes

• RADIUS over TLS (RadSec): Yes

• Dynamic RADIUS-assigned VLAN: Yes

Hardware

Max. Power Consumption: 43W

Supported Voltage Range: 42.5—57V DC

Networking Interface: (1) 10 GbE RJ45 port / (1) 1 GbE RJ45 port

Weight: 1.8 kg (4 lb)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate, aluminum alloy

Mount Material

Stainless steel (SUS304), galvanized steel (SGCC)

LEDs

System

R/G/B

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications

CE, FCC, IC

Operating Frequency

US/CA:

2400 - 2472 MHz

U-NII-1: 5150 - 5250 MHz

U-NII-2A: 5250 - 5350 MHz

U-NII-2C: 5470 - 5725 MHz

U-NII-3: 5725 - 5850 MHz

U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:

2400 - 2483.5 MHz

5150 - 5725 MHz

5925 - 7125 MHz

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

5 to 95% noncondensing
