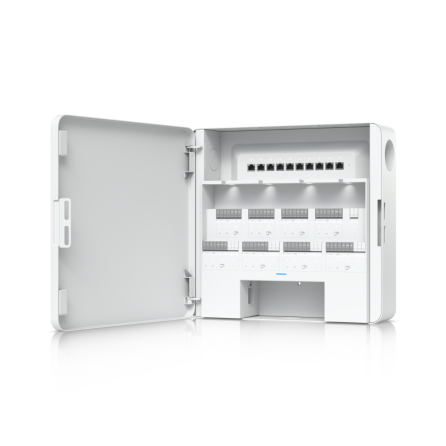

Ubiquiti EAH-8 Enterprise Access Hub (8) Lock terminals (12V or Dry)

Mechanical

• Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1")

• Weight Device: 9.1 kg (20 lb)

• Mount: 624 g (1.4 lb)

• Enclosure material: SGCC housing with PC cover

• Mounting material: SGCC wall mount plate

Hardware

• Networking interface: (10) 10/100/1000 Base-T

• Power method: Universal input, 100–240V AC, Max. 4.4A, 50/60Hz / 32–48V DC Lead Acid Battery, Max. 7.5A @32V

• Power supply: AC/DC, internal

• Max. power consumption: 240W

• PoE interface: (8) PoE (Pins 1, 2+; 3, 6-)

• Voltage range PoE mode: 44–57V DC

• Total available PoE: 60W

• Max. PoE wattage per port: 15.4W

• Button: (1) Factory-reset

Digital input (8) Inputs for request-to-exit devices

(8) Inputs for door position sensors

(1) Emergency

Dry output relay (8) Lock terminals (12V or Dry)

(4) AUX terminals for advanced setup (Chime/Siren/Door opener)

Powered output relay Lock: 12V DC, 1A/ Dry

Aux: Dry only

Recommend max. cable length

18 AWG

UACC-Cable-DoorLockRelay length 20

AWG length 22

AWG length 24

AWG length

UA-Lock-Electric

(400mA) 100 m

(328 ft) 66 m

(217 ft) 42 m

(138 ft) 25 m

(82 ft)

UA-Lock-Magnetic-270kg

(800mA) 46 m

(151 ft) 30 m

(98 ft) 20 m

(66 ft) 12 m

(29 ft)

UA-Lock-Magnetic-540kg

(500mA) 80 m

(262 ft) 51 m

(167 ft) 32 m

(105 ft) 20 m

(66 ft)

Other locks

(1A) 36 m

(118 ft) 24 m

(79 ft) 15 m

(49 ft) 9 m

(30 ft)

Operating environment Indoor use only

Ambient operating temperature 0 to 40° C (32 to 104° F)

Ambient operating humidity 5 to 95% noncondensing

Software information The software version of a product can be checked at https://unifi.ui.com

UL 294 level Destructive attack: Level I

Line security: Level I

Endurance: Level I

Standby power: Level I

UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.

The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.

• CAN/ULC-60839-11-1: Grade Grade assignment: I

• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

LEDs

• PoE in Steady white: Pending adoption

 Steady blue: Adopted

 Alternating white/blue: Firmware updating

• PoE out: Blinking white: Active signal

• Input terminals: Steady white: Active signal

• Output relays: Steady white: Relay triggered
