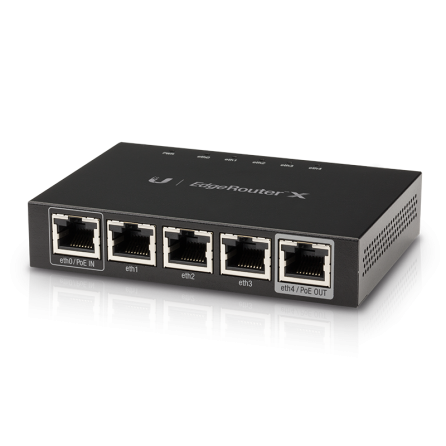

Ubiquiti ER-X Router 5 GbE Ports

Ubiquiti Networks introduces the EdgeRouter™ X, part of the EdgeMAX® platform. The EdgeRouter X combines carrier‑class reliability with excellent price‑to‑performance value in an ultra‑compact form factor.

PoE Versatility

Two models of the EdgeRouter X are available. The standard model, the ER‑X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option1 is available to support a single  airMAX® device2.The SFP model, the ER‑X‑SFP, is powered by an external power adapter. The five Gigabit RJ45 ports support 24V passive PoE output for airMAX or UniFi® devices, while its SFP port provides fiber connectivity to support backhaul applications.

Configuration Methods

Powered by a proprietary and intuitive graphical interface, EdgeOS™, every EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

EdgeRouter X

Model: ER‑X

• (5) Gigabit RJ45 ports
• Passive PoE passthrough option*
• Power via 24V passive PoE or power adapter
• Ports configurable for line-rate, Layer-2 switching
• 130 kpps for 64‑byte packets
• 1 Gbps for 1518-byte packets

Specifications

• Dimensions 110 x 75 x 22 mm (4.33 x 2.95 x 0.87")
• Weight 175 g (6.17 oz)
• Max. Power Consumption 5W
• Power Input 12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
• Power Supply External AC/DC Adapter
• Supported Voltage Range 9 to 26VDC
• Button Reset
• LED Power, Ethernet 0‑4
• Processor Dual-Core 880 MHz, MIPS1004Kc
• System Memory 256 MB DDR3 RAM
• Code Storage 256 MB NAND
vCertifications CE, FCC, IC
• Wall‑Mount Ye s
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -10 to 45° C (14 to 113° F)
• Operating Humidity 10 to 90% Noncondensing
