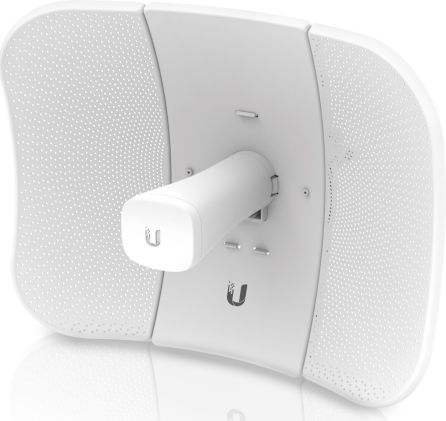

Ubiquiti LBE-5AC-Gen2-US 5GHz. 2x2 MIMO airMAX® ac CPE

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management.

Improved Noise Immunity

The LiteBeam 5AC Gen 2 directs
RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially lters out noise, so noise immunity
is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

Hardware Overview Full Adjustment Flexibility

Full Adjustment Flexibility
The LiteBeam 5AC features a two-mount system that provides adjustment  exibility along both axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.

Improved Mounting and Surge Protection
Featuring enhanced protection against power surges, the LiteBeam 5AC Gen 2 offers a more robust mount with separate azimuth and elevation adjustments.

Specifications

• Dimensions 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73")
• Weight

Without Mount 800 g (1.76 lb)
With Mount 980 g (2.16 lb)

• Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
• Max. Power Consumption 7W
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range 24V ± 10%
• Operating Frequency

Worldwide 2412 - 2462 MHz 5150 - 5875 MHz
USA: U-NII-1 5150 - 5250 MHz
USA: U-NII-2A 5250 - 5350 MHz
USA: U-NII-2C 5470 - 5725 MHz
USA: U-NII-3 5725 - 5850 MHz

• Gain 23 dBi
• Networking Interface (1) 10/100/1000 Ethernet Port
• Processor Specs MIPS 74Kc
• Memory 64 MB DDR2
• LEDs Power, Ethernet
• Channel Sizes

PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz

• Enclosure Characteristics Re ector (SGCC 0.6T) / Plastic: PC
• Mounting Pole-Mounting Kit (Included)
• Wind Loading 275 N @ 200 km/h (61.8 lbf @ 125 mph)
• Wind Survivability 200 km/h (125 mph)
• ESD/EMP Protection ± 24 kV Contact / Air
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• Certi cations CE, FCC, IC
