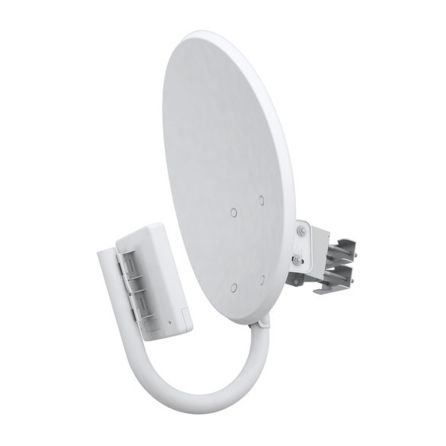

Ubiquiti NBM3-Kit 3.3-3.7 GHz. Complete System

InnerFeed Antenna Technology

Ubiquiti’s revolutionary InnerFeed technology integrates the entire radio system into the feedhorn of an antenna. NanoBridge M combines Ubiquiti’s Innerfeed and AirMax (MIMO TDMA Protocol) technologies to create a simple, yet extremely powerful and robust wireless unit capable of 100+Mbps real outdoor throughput and up to 30km+range.
Complete antenna and radio system integration provides revolutionary cost/performance solutions to the Worldwide Broadband Industry.
The low cost, hi-performance, and robust “all-in-one” design of NanoBridge M make it extremely versatile and ideal in several different applications

Specifications

* Processor Specs Atheros MIPS 24KC, 400MHz.
* Memory Information 32MB SDRAM, 8MB Flash
* Networking Interface 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
* Wireless Approvals -
* RoHS Compliance: YES
* Enclosure Characteristics Outdoor UV Stabilized Plastic
* Mounting Kit Pole Mounting Kit included
* Power Supply 24V, 1A POE Supply included
* Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
* Operating Temperature -30C to 75C
* Operating Humidity 5 to 95% Condensing
* Shock and Vibration ETSI300-019-1.4
* Dimensions 492 x 440 x 705 mm
* Weight 900 gr
* Max Power Consumption 8 Watts
* Antenna Gain 21.5-22.5 dBi
* Operating Frequency Summary (MHz) 3300-3700
