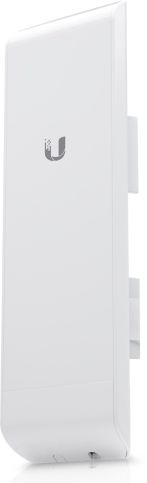

Ubiquiti NSM2 2.4GHz. Indoor/Outdoor airMAX® CPE

WARNING: WORLDWIDE VERSIONS ARE NOT INTENDED FOR USE WITHIN THE UNITED STATE OR CANADA. THEY ARE FOR EXPORT ONLY. THEY ARE NOT ALLOWED TO BE USED OR INSTALLED IN THESE TERRITORIES, IT IS IMPERATIVE THAT ANY SHIPMENTS MADE WITHIN THE UNITED STATE OR CANADA BE THE US VERSION, IF YOU ARE BUYING THE WORLDWIDE VERSION YOU MUST COMPLETE THE FCC FORM. THERE WILL NOT EXCEPTIONS!

Ubiquiti Networks™ set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation™. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX™ (MIMO TDMA protocol) technology. The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.

Specifications

• Processor Specs Atheros MIPS 24KC, 400 MHz

• Memory 32 MB SDRAM, 8 MB Flash

• Networking Interface (1) 10/100 Ethernet Port

• Wireless Approvals FCC Part 15.247, IC RS210, CE

• RoHS Compliance Yes

• Dimensions (mm) 294 x 31 x 80

• Weight 0.4 kg

• Power Supply (PoE) 24V, 0.5A

• Max. Power Consumption 8 W

• Gain 11 dBi

• Polarization Dual Linear

• Enclosure Characteristics Outdoor UV Stabilized Plastic

• Mounting Pole Mounting Kit Included

• Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)

• Operating Temperature -30 to 75° C

• Operating Humidity 5 to 95% Condensing

• Shock & Vibration ETSI300-019-1.4

• Operating Frequency Summary (MHz) 2412-2462

• Gain 10.4-11.2 dBi

• Cross-pol Isolation 23 dB Minimum

• Max. VSWR 1.6:1

• Beamwidth 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
