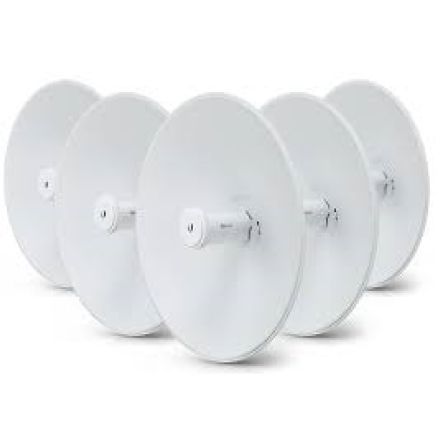

Ubiquiti PBE-5AC-Gen2-5-US High-Performance airMAX® ac Bridge 5Pk

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 5AC Gen 2, with dedicated Wi-Fi management.

Improved Noise Immunity
The PowerBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially  lters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Featuring high performance and innovative design, the PowerBeam 5AC Gen 2 is versatile and cost-effective to deploy.

Technology

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time
slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime ef ciency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.

Intelligent QoS Priority assigned to voice/video for seamless streaming.

Scalability High capacity and scalability.

Long Distance Capable of high-speed, carrier-class links.

Superior Performance
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol.

Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Throughput Breakthrough
airMAX ac supports high data rates, which require dense modulation: 256QAM – a signi cant increase from 64QAM, which is used in airMAX.

With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mbps real TCP/IP throughput – up to triple the throughput of standard airMAX products.

Hardware Overview

Featuring improved surge protection, the PowerBeam 5AC Gen 2 is available in single- or  ve-packs.

Innovative Mechanical Design
• Built-in mechanical tilt Mounting bracket conveniently offers elevation adjustments: ± 20° tilt.
• Quick assembly Minimal fasteners simplify installation.
• Easy removal The antenna feed can be detached with the push of a button.

Industrial-Strength Construction
• Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
• Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance. The hardware also prevents paint from being removed from the metal brackets for improved corrosion resistance.
• Optional Support In high-wind environments, you can enhance support with additional hardware (not included).

Specications

• Dimensions 420 x 420 x 230 mm (16.54 x 16.54 x 9.06")
• Weight 2.22 kg (4.89 lbs)
• Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
• Max. Power Consumption 8.5W
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range 20 to 26VDC
• Gain 25 dBi
• Networking Interface (1) 10/100/1000 Ethernet Port
• Processor Specs MIPS 74Kc
• Memory 64 MB
• LEDs Power, Ethernet, (4) Signal Strength
• Channel Sizes

PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz

• Enclosure Characteristics

Antenna Feed Outdoor UV Stabilized Plastic
Dish Re ector Powder-Coated SPCC

• Mounting Pole-Mounting Kit (Included)
• Wind Loading 380 N @ 200 km/h (85.4 lbf @ 125 mph)
• Wind Survivability 200 km/h (125 mph)
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• RoHS Compliance Yes
• Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test IEC 68-2-6
• Temperature Shock Test IEC 68-2-14
• UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
• Certi cations CE, FCC, IC
