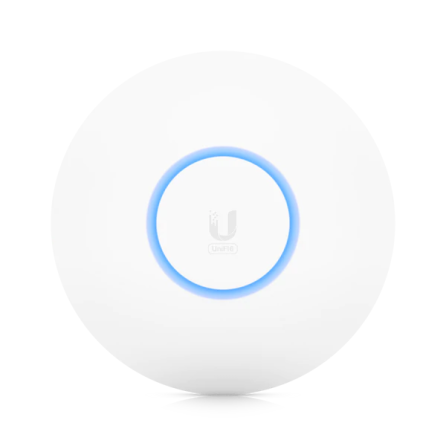

Ubiquiti U6-Enterprise-US AP 2.4 / 5 / 6 GHz. WiFi 6 2.5 GbE

Powerful, ceiling-mounted WiFi 6E access point designed to provide seamless, multi-band coverage within high-density client environments.

Specifications:

• WiFi 6 support (2.4/5/6 GHz bands)

• 10.2 Gbps aggregate throughput rate

• (1) 2.5GbE RJ45 port (PoE In)

• Powered with PoE+

Mechanical

• Dimensions 220 x 48.1 mm (Ø8.66 x 1.89")

• Weight Without mount: 960 g (2.1 lb)

• With mount: 1090 g (2.4 lb)

• Enclosure materials Top housing: plastic

• Bottom housing: aluminum

• Mount material: SGCC steel

Hardware

• Management interface Ethernet

• Bluetooth

• Networking interface (1) 2.5GbE RJ45 port

• Button Reboot and factory-reset

• LED W/B

• Power method PoE+

• Power supply UniFi PoE switch

• 48V, 0.5A PoE adapter (optional)

• Supported voltage range 44 - 57VDC

• Max. power consumption 22W

Max. TX power

• 2.4 GHz: 22 dBm

• 5 GHz: 26 dBm

• 6 GHz: 26 dBm

MIMO

• 2.4 GHz: 2 x 2 (UL MU-MIMO)

• 5 GHz: 4 x 4 (DL/UL MU-MIMO)

• 6 GHz: 4 x 4 (DL/UL MU-MIMO)

Throughput rate

• 2.4 GHz: 573.5 Mbps

• 5 GHz: 4.8 Gbps

• 6 GHz: 4.8 Gbps

• Antenna gain

• 2.4 GHz: 3.2 dBi

• 5 GHz: 5.3 dBi

• 6 GHz: 6 dBi

• Mounting Wall/ceiling (included)

• Operating temperature -30 to 60° C (-22 to 140° F)

• Operating humidity 5 - 95% noncondensing

• Certifications CE, FCC, IC

Software

• WiFi standards 802.11a/b/g

• WiFi 4/WiFi 5/WiFi 6/WiFi 6E

• Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

• BSSID 8 per radio

• VLAN 802.1Q

• Advanced QoS Per-user rate limiting

• Guest traffic isolation Supported

• Concurrent clients 600+

• Zero wait DFS Yes

Supported Data Rates (Mbps)

• 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b 1, 2, 5.5, 11 Mbps

• 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

• 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

• 802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
