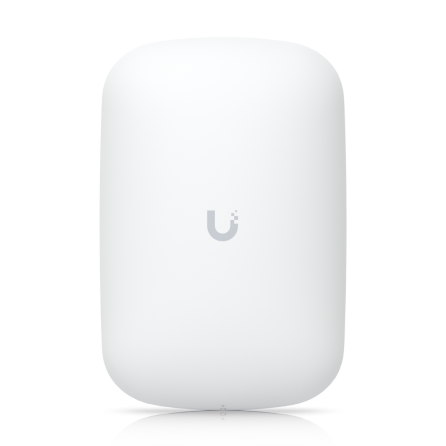

Ubiquiti U6-Extender-US WiFi 6 Coverage Extender

Easy-to-deploy WiFi 6 coverage extender that fits a standard wall outlet.

Specifications:

Mechanical

• Dimensions: US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3")

 EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1")

• Weight US: 290 g (0.6 lb)

• EU: 340 g (0.7 lb)

• Enclosure material Polycarbonate

Hardware

• Management interface Bluetooth

• Power method Universal AC input, 100—240V AC, 0.3A max., 50/60 Hz

• Supported voltage range 110—240V AC

• Max. power consumption 11W

• Max. TX power:

2.4 GHz: 22 dBm

5 GHz: 26 dBm

• MIMO

2.4 GHz 2x2 (UL MU-MIMO)

5 GHz 4 x 4 (DL/UL MU-MIMO)

• Throughput rate

2.4 GHz: 573.5 Mbps

5 GHz: 4.8 Gbps

• Antenna gain

2.4 GHz: 5 dBi

5 GHz: 6dBi

• LEDs White/blue

• Button Factory reset

• Operating temperature -10 to 50° C (14 to 122° F)

• Operating humidity 5 to 95% noncondensing

• Certifications CE, FCC, IC

Software

• WiFi standards 802.11a/b/g

• WiFi 4/WiFi 5/WiFi 6

• Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

• BSSID 8 per radio

• VLAN 802.1Q

• Advanced QoS Per-user rate limiting

• Guest traffic isolation Supported

• Concurrent clients 300+

• Zero-wait DFS Yes*

*Supported with upcoming firmware versions.

Supported Data Rates

• 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b 1, 2, 5.5, 11 Mbps

• 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)

• 802.11ac (WiFi 5) 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

• 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
