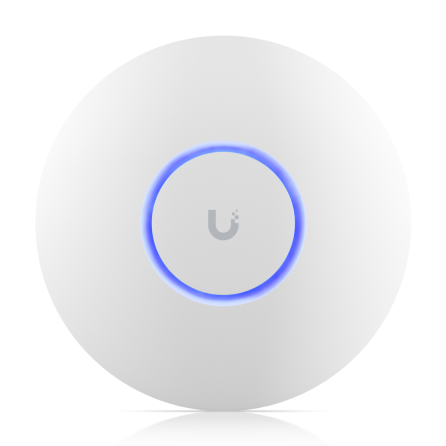

Ubiquiti U6+-US AP 2.4/5 GHz. 2x2 Wi-Fi 6 (1) GbE RJ45 port

Powerful, ceiling-mounted WiFi 6E access point designed to provide seamless, multi-band coverage within high-density client environments.

Specifications:

• WiFi 6 support (2.4/5/6 GHz bands)

• 10.2 Gbps aggregate throughput rate

• (1) GbE RJ45 port (PoE In)

• Powered with PoE+

Mechanical

• Dimensions: 160 x 33 mm (Ø6.3 x 1.3")

• Weight Without mount: 338 g (0.79 lb)

• With mount: 413 g (0.91 lb)

• Enclosure materials: Polycarbonate, aluminium

• Mount material: ABS, SGCC steel

Hardware

• Networking interface (1) GbE RJ45 port

• Management interface Ethernet

• Power method PoE

• Supported voltage range 44 - 57VDC

• Max. power consumption 9W

• Max. TX power

• 2.4 GHz 23dBm

• 5-7 GHz 23dBm

• MIMO

• 2.4 GHz 2x2

• 5 GHz 2x2

• Throughput rate

• 2.4 GHz 573.5 Mbps

• 5 GHz 2402 Mbps

• Antenna gain

• 2.4 GHz 3dBi

• 5 GHz 5.4dBi

• Button Factory Reset

• LEDs White/blue

• Operating temperature -30 to 60° C (-22 to 140° F)

• Operating humidity 5 - 95% noncondensing

• Certifications CE, FCC, IC

Software

• WiFi standards 802.11a/b/g ~ WiFi 4/WiFi 5/WiFi 6/WiFi

• Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

• BSSID 8 per radio

• VLAN 802.1Q

• Advanced QoS Per-user rate limiting

• Guest traffic isolation Supported

• Zero wait DFS Yes

• Concurrent clients 300+
