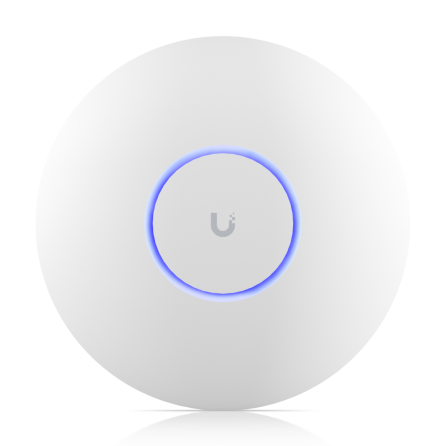

Ubiquiti U7-Pro-Max-US AP WiFi 7 2.4 / 5 / 6 GHz. 2.5 GbE

Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.

WiFi 7 with 6 GHz support

8 spatial streams

Real-time spectral analysis for enhanced channel selection*

160 m² (1,750 ft²) coverage

500+ connected devices

Powered using PoE+

2.5 GbE uplink

Specifications:

• Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")

• Weight: 680 g (1.5 lb)

• Enclosure material: Polycarbonate, aluminum

• Mount material: Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

• Networking interface: (1) 1/2.5 GbE RJ45 port

• Management interface: Ethernet

• Power method: PoE+

• Power supply: UniFi PoE switch

• Supported voltage range: 44—57V DC

• Max. power consumption: 25W

• Max. TX power

2.4 GHz: 23 dBm

5 GHz: 29 dBm

6 GHz: 23 dBm

• MIMO

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

5 GHz: 4 x 4 (DL/UL MU-MIMO)

6 GHz: 2 x 2 (DL/UL MU-MIMO)

• Throughput rate

2.4 GHz: 688 Mbps (BW40)

5 GHz: 8.6 Gbps (BW240)

6 GHz: 5.7 Gbps (BW320)

• Antenna gain

2.4 GHz: 4 dBi

5 GHz: 6 dBi

6 GHz: 5.9 dBi

• LEDs: White/blue

• Button: Factory reset

• Mounting: Wall, ceiling (Included)

• Ambient operating temperature: -30 to 60° C (-22 to 140° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

Software

• WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

• BSSID: 8 per radio

• VLAN: 802.1Q

• Advanced QoS: Per-user rate limiting

• Guest traffic isolation: Supported

• Concurrent clients: 500+

• Supported Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11be (WiFi 7)

5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

6 GHz: 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
