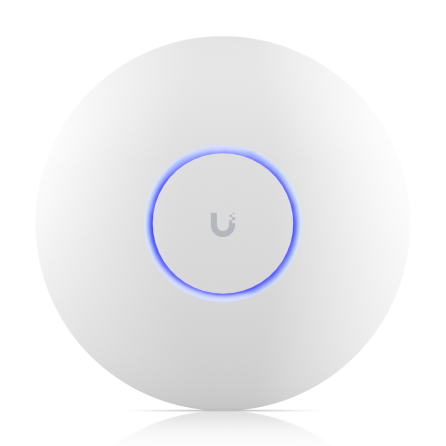

Ubiquiti U7-Pro-US AP WiFi 7 2.4 / 5 / 6 GHz. 2.5 GbE

Specifications:

• Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")

• Weight: 680 g (1.5 lb)

• Enclosure material: Polycarbonate, metal

• Mount material: Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

• Networking interface: (1) 1/2.5 GbE RJ45 port

• Management interface: Ethernet

• Power method: PoE+

• Power supply: UniFi PoE switch

• Supported voltage range: 44—57V DC

• Max. power consumption: 21W

Max. TX power

• 2.4 GHz: 22 dBm

• 5 GHz: 26 dBm

• 6 GHz: 23 dBm

MIMO

• 2.4 GHz: 2 x 2

• 5 GHz: 2 x 2

• 6 GHz: 2 x 2

• Throughput rate

• 2.4 GHz: 688 Mbps

• 5 GHz: 2882 Mbps

• 6 GHz: 5765 Mbps

Antenna gain

• 2.4 GHz: 4 dBi

• 5 GHz: 6 dBi

• 6 GHz: 5.8 dBi

• LEDs: White/blue

• Button: Factory reset

• Mounting: Wall/ceiling (Included)

• Ambient operating temperature: -30 to 60° C (-22 to 140° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

Software

• WiFi standards: 802.11a/b/g/n/ac/ax/be

• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

• BSSID: 8 per radio

• VLAN: 802.1Q

• Advanced QoS: Per-user rate limiting

• Guest traffic isolation: Supported

• Concurrent clients: 300+

Supported Data Rates

• 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b 1, 2, 5.5, 11 Mbps

• 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

• 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

• 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

• 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
