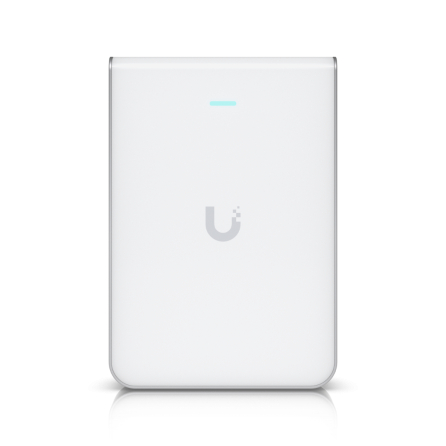

Ubiquiti U7-Pro-Wall-US AP WiFi 7 Wall-mounted 2.5 GbE uplink

Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.

WiFi 7 with 6 GHz support

6 spatial streams

140 m² (1,500 ft²) coverage

300+ connected devices

Powered using PoE+

2.5 GbE uplink

Versatile deployment with optional Flush Mount and Table Stand accessories*

Specifications:

• Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")

• Weight: 580 g (1.3 lb)

• Enclosure material: Polycarbonate, aluminum

• Mount material: Aluminum

Hardware

• Networking interface: (1) 1/2.5 GbE RJ45 port

• Management interface: Ethernet

• Power method: PoE+

• Power supply: UniFi PoE switch

• Supported voltage range: 44—57V DC

• Max. power consumption: 22W

• Max. TX power

2.4 GHz: 22 dBm

5 GHz: 26 dBm

6 GHz: 23 dBm

• MIMO

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

5 GHz: 2 x 2 (DL/UL MU-MIMO)

6 GHz: 2 x 2 (DL/UL MU-MIMO)

• Throughput rate

2.4 GHz: 688 Mbps (BW40)

5 GHz: 4.3 Gbps (BW240)

6 GHz: 5.7 Gbps (BW320)

• Antenna gain

2.4 GHz: 4 dBi

5 GHz: 5 dBi

6 GHz: 6 dBi

• LEDs: White/blue

• Button: Factory reset

• Mounting: Wall (Included)

• Table stand, flush mount (Optional)

• Ambient operating temperature: -30 to 60° C (-22 to 140° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

Software

• WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

• BSSID: 8 per radio

• VLAN: 802.1Q

• Advanced QoS: Per-user rate limiting

• Guest traffic isolation: Supported

• Concurrent clients: 300+

Supported Data Rates

• 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b 1, 2, 5.5, 11 Mbps

• 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

• 802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

• 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

• 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
