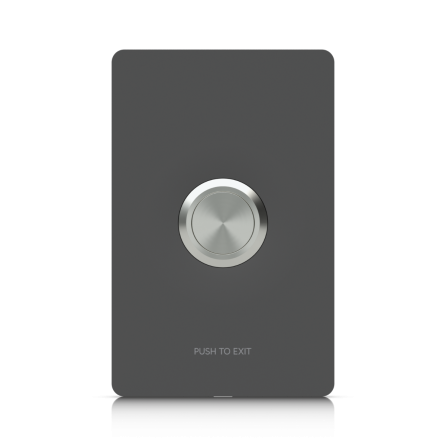

Ubiquiti UA-Button Push-to-exit button designed for UniFi Access Hubs

Specifications:

• Dimensions: 137 x 88 x 38.1 mm (5.4 x 3.5 x 1.5")

• Weight: 180 g (6.3 oz)

• Enclosure material: Polycarbonate

• Mounting material: Metal

• Color: Black/white

Hardware

• Contact type: (1) Normal open

• Power method:      UniFi Access Hubs

UL 294 Power-limited Class 2 PSU

UL 60950-1/62368-1 LPS/PS2 PSU

• Contact rating: 30V DC, 2A

• Mechanical life: 1,000,000 clicks

• Environment: Indoor only

• Storage temperature: -40 to 70° C (-40 to 158° F)

• Ambient operating temperature: 0 to 40° C (32 to 104° F)

• Ambient operating humidity: 5 to 90% noncondensing

• UL 294 level:           Destructive attack: Level I

Line security: Level I

Endurance: Level I

Standby power: Level I

• UL 294 statement: Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.

The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

• CAN/ULC-60839-11-1 Grade: Grade assignment: 1

• Certification: CE, UL 294, CAN/ULC-60839-11-1

• Document number, and issue date and/or revision level: UA-Button, V01
