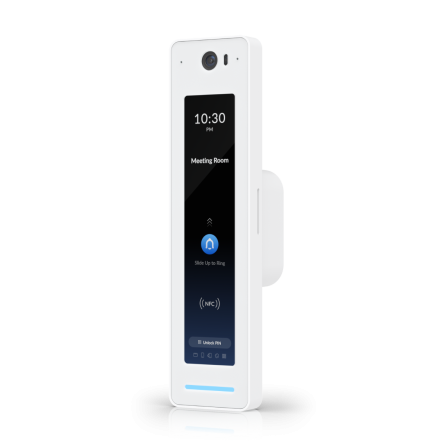

Ubiquiti UA-G2-Pro Reader & Intercom Card / NFC / PIN

Second-generation NFC card reader and intercom.

Unlock using an NFC card or UniFi Identity mobile app

Doorbell for unlock with video of visitor and two-way intercom

Video works at ADA-compliant mounting height

PIN unlocking on the screen

Connects to UniFi Access Hub using PoE

IP55 rain resistance (-10 to 45° C)

Specifications:

Mechanical

• Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")

• Weight: 136 g (4.8 oz)

• Enclosure material: Polycarbonate, glass

• Mount material: Aluminum alloy

• Mounting: Wall, gang box

• Weatherproofing: IP55

Hardware

• Networking interface (1) GbE RJ45 port

• Connectivity: BLE 4.2

  NFC

• Power method: PoE

      UL 294 Power-limited Class 2 PSU

      UL 60950-1/62368-1 LPS/PS2 PSU

• Supported voltage range: 48V DC

• Max. power consumption: 6W

• ESD/EMP protection: Air: ±15kV, contact: ±8kV

• Sensor: Proximity sensor

• Camera: 4000 x 3000, 12 MP, 30 FPS

• View angle: H: 96.67°, V: 123.15°, D: 153.11°

• Microphone: Yes

• Speaker: (1) 4 ohm, 1.5W

• LEDs: R/G/B/W

Flash

• Button: (1) Factory-reset

• NFC frequency: 13.56 MHz

• NFC read range: < 30 mm

• NFC standards: ISO 14443A, 14443B, 15693

• NFC technology: NFC Tag 1,2,3,4,5

        MIFARE Classic

        MIFAREPlus

        MIFARE Ultralight

        MIFARE DESFire

• Operating environment: Outdoor use

• Ambient operating temperature: Device: -30 to 45° C (-22 to 113° F)

    Display: -10 to 45° C (14 to 113° F)

• Ambient operating humidity: 5 to 90% noncondensing

• UL 294 level: Destructive attack: Level I

  Line security: Level I

  Endurance: Level I

  Standby power: Level I

• UL 294 statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.

 The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

• PoE cabling requirements: Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

   The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.

• CAN/ULC-60839-11-1 Grade: Grade assignment: I

• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

LED

• System Steady blue: Adopted/device is ready

• Steady white: Pending adoption

• Blinking white/blue: Upgrading firmware

• Strobing red: Emergency lockdown
