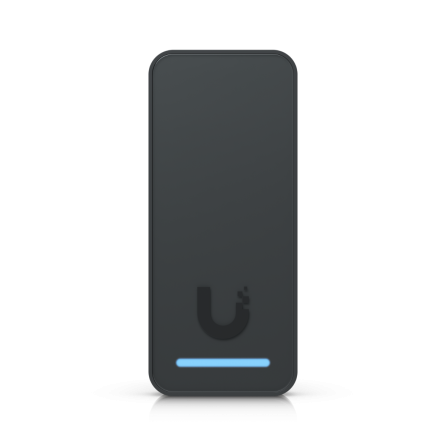

Ubiquiti UA-G3-B Reader Compact Card / NFC Black / Apple Touch Pass support

Compact third-generation access reader with Apple Touch Pass support.

Unlock using an NFC card or UniFi Identity mobile app

Additional handwave unlock functionality

Entry and exit greeting messages

Connects to UniFi Access Hub using PoE

IP55 weather resistance (-30 to 45° C)

Specifications:

• Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")

• Weight: 82 g (2.9 oz)

• Enclosure material: Polycarbonate, glass

• Mounting: In wall, gang box

• Weatherproofing: IP55

Hardware

• Networking interface: (1) 10/100 MbE RJ45 port

• Connectivity: BLE 4.1 / NFC

• Power method: PoE

       UL 294 Power-limited Class 2 PSU

       UL 60950-1/62368-1 LPS/PS2 PSU

• Supported voltage range: 48V DC

• Max. power consumption: 5W

• ESD/EMP protection: Air: ±15kV, contact: ±8kV

• Sensors Proximity: sensor

• Speaker: (1) 8 ohm, 0.7W

• LEDs: R/G/B/W

• Button: (1) Factory-reset

• NFC frequency: 13.56 MHz

• NFC read range: < 30 mm

• NFC standards: ISO 14443A, 14443B, 15693

• NFC technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)

        MIFARE Classic / MIFARE DESFire

        Sony FeliCa™ (ID only)

        NFC Forum tags T1T, T2T, T3T, T4T and T5T

        ECP 2.0

• Operating environment Outdoor use

• Ambient operating temperature -30 to 45° C (-22 to 113° F)

• Ambient operating humidity 5 to 90% noncondensing

• UL 294 level: Destructive attack: Level I

  Line security: Level I

  Endurance: Level I

  Standby power: Level I

• UL 294 statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.

 The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

• PoE cabling requirements: Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

   The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for  horizontal or riser cable.

• CAN/ULC-60839-11-1 Grade: Grade assignment: I

• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
