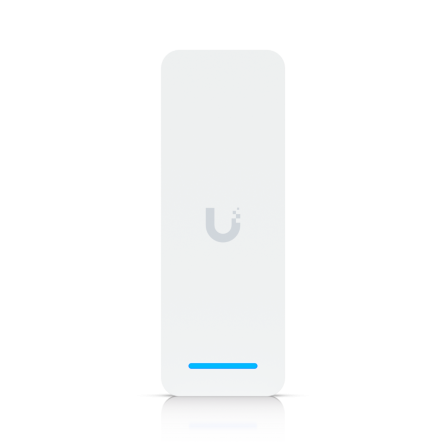

Ubiquiti UA-Ultra Reader Access Control

Tamper-resistant access reader with a built-in hub for complete, single-door entry control from one device.

(1) Lock terminal (12V/1A)

(1) Exit request input

Unlock using an NFC card or UniFi Identity mobile app

IP55 weather resistance (-30 to 40° C)

Specifications:

• Dimensions: 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5")

• Weight: 140 g (4.9 oz)

• Enclosure material: Polycarbonate, aluminum alloy

• Mounting: Wall mount, gang box mount

• Weatherproofing: IP55

Hardware

• Networking interface: 10/100 MbE RJ45 port

• Connectivity: Ethernet / BLE 4.2

• Digital input: (1) Exit request

• Lock terminals: (1) 12V, 1A

• Power method: PoE+

• Max. power consumption: 18W

• ESD/EMP protection: Air: ±8kV, contact: ± 4kV

• LEDs: R/G/B/W

• Button: (1) Factory reset

• Tamper switch: Yes

• Speaker: Buzzer

• NFC frequency: 13.56 Mhz

• NFC read range: < 50 mm

• NFC standards: ISO 14443A, 14443B, 15693

• NFC technology:    NFC Tag 1,2,3,4,5

MIFARE Classic

MIFARE Plus

Mifare Ultralight

MIFARE DESFire

• Ambient operating temperature: -30 to 40° C (-22 to 104° F)

• Ambient operating humidity: 5 to 90% noncondensing

• Certifications: CE, FCC, IC
