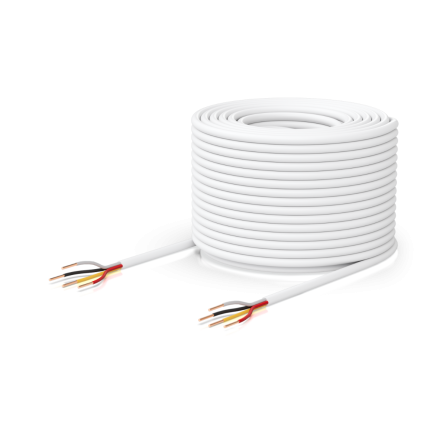

Ubiquiti UACC-Cable-DoorLockRelay-2P Cable Door Lock Relay 2 Pair

Specifications:

• Weight: 5.6 kg kg (12.3 lb)

• Cable length: 152.4 m (500 ft)

• Jacket OD: 4.5 mm (0.18")

• Jacket material: Thermoplastic elastomer (TPE)

• Jacket color: White

• Conductor wire gauge : 18/22 AWG

• Insulation material: Semi-rigid polyvinyl chloride (SR-PVC)

• Insulation color: black/red (18AWG), amber/white (22AWG)

• Number of conductors: 4

• Conductor material: Solid bare copper

• Max. pull tension: 24.2 kgf

• Min. bend radius: 56 mm (2.2")

• Conductor DCR: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG)

• Voltage: 36V DC

• Flame rating: VW-1

• Current rating: 18AWG: 2A for 500 ft length

• 22AWG: 1A for 500 ft length

• Storage temperature: -45 to 65° C (-40 to 149° F)

• Ambient operating temperature: -45 to 65° C (-40 to 149° F)
