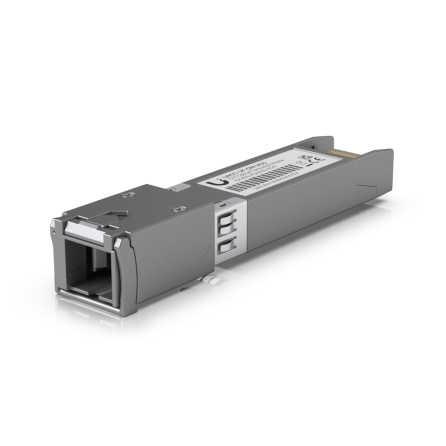

Ubiquiti UACC-UF-OM-XGS Fiber XGS/XG Optical Transceiver

10 Gbps optical transceiver module designed for the Fiber OLT XGS.

Specifications:

• Supported media: Single-mode fiber

• Connector type: (1) SC/UPC

• TX wavelength: 1,577nm

• RX wavelength: 1,270nm

• TX power range: +4 to +7 dBm

• RX power range: -9 to -26 dBm

• Downlink data rate: 10 Gbps

• Uplink data rate: 10 Gbps (XGS) / 2.5 Gbps (XG)

• Max. power consumption: 2.6W

• Max. cable distance: 20 km

• Ambient operating temperature: 0 to 70° C (32 to 158° F)

• Storage temperature: -40 to 85° C (-40 to 185° F)

• Packaging: Single pack

• WARNING: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 - Do not look into the ends of the fiber/optical cable or the SFP module while the converters are powered.
