Ubiquiti UAP-AC-M 802.11AC Indoor/Outdoor Wi-Fi Access Point Mesh Worldwide

WARNING: WORLWIDE VERSIONS ARE NOT INTENDED FOR USE WITHIN THE UNITED STATE OR CANADA. THEY ARE FOR EXPORT ONLY. THEY ARE NOT ALLOWED TO BE USED OR INSTALLED IN THESE TERRITORIES, IT IS IMPERATIVE THAT ANY SHIPMENTS MADE WITHIN THE UNITED STATE OR CANADA BE THE US VERSION, IF YOU ARE BUYING THE WORLDWIDE VERSION YOU MUST COMPLETE THE FCC FORM. THERE WILL NOT EXCEPTIONS!

UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a re ned industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly con gure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Save money and save time UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of using the UniFi Cloud Key with built-in software.

Powerful Hardware

The UniFi AC Mesh APs feature Wi-Fi 802.11AC with Plug & Play Mesh technology.

Intuitive UniFi Controller Software

Con gure and manage your APs with the easy-to-learn user interface.

Expandable Unlimited scalability

Bbuild wireless networks as big or small as needed. Start with one and expand to thousands while maintaining a single uni ed management system.

Extend Your Coverage

With the UniFi Controller software running in a NOC or in the cloud, administrators can manage multiple sites: multiple distributed deployments and multi-tenancy for managed service providers. Below are some deployment examples.

Mesh Multi-Hop

A large outdoor area, such as a park with minimal infrastructure, can take advantage of a mesh network comprised of the UniFi AC Mesh models.

Omnidirectional Coverage, Indoors/Outdoors

The UniFi AC Mesh AP includes adjustable dual-band omni antennas, and you have the option to use any 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients, like a conference hall.

Directional Coverage, Outdoors

The UniFi AC Mesh AP is versatile; you can use any 5 GHz sector antenna (wide beam in the azimuth plane and narrow in the elevation plane) for broad outdoor coverage.

Maximum Coverage, Outdoors

The UniFi AC Mesh Pro AP is ideal for applications requiring 3x3 MIMO data rates for close-in omni coverage.

TemporaryInstallations

DeploytheUniFiACMesh models for outdoor installations requiring quick setup and takedown, such as a music festival or concert venue.

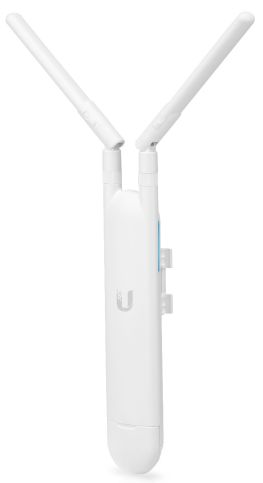

Model: UAP-AC-M

The UniFi AC Mesh AP provides simultaneous, dual-band, 2x2 MIMO technology and is available in single and  5-packs*. (* 5 packs do not come with PoE injectors.)

Compact Form Factor The UniFi AC Mesh AP discreetly integrates into any environment.

Weather-Resistant Enclosure The UniFi AC Mesh AP can be used indoors or outdoors.

Versatile Mounting The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna. (All accessories are included.)

Multiple Power Options The UniFi AC Mesh AP is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative A compatible switch, EdgePointTM EP-R6, UniFi PoE Switch, or the included Gigabit PoE adapter*.

Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.

Specifications

• Dimensions 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
• Weight 152 g (5.36 oz) with Antennas
• Networking Interface (1) 10/100/1000 Ethernet Port
• Buttons Reset
• Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported Voltage Range: 44 to 57VDC)
• Power Supply 24V, 0.5A Gigabit PoE Adapter*
• Power Save Supported
• Maximum Power Consumption 8.5W
• Maximum TX Power

2.4 GHz 20 dBm
5 GHz 20 dBm

• Antennas (2) External Dual-Band Omni Antennas

2.4 GHz 3 dBi
5 GHz 4 dBi

• Wi-Fi Standards 802.11 a/b/g/n/ac
• Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• BSSID Up to Four per Radio
• Mounting Wall/Pole/Fast-Mount (Kits Included)
• Operating Temperature -30 to 70° C (-22 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• Certi cations CE, FCC, IC
