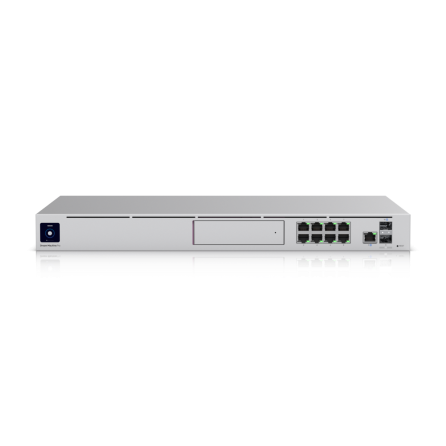

Ubiquiti UDM-Pro Gateway Dream Machine Pro (8) GbE RJ45 (1) 10G SFP+ Ports

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.

Features:

• All-in-one 1U rack appliance for small to medium sized business

• Combines new UniFi OS with 8-port switch and security gateway

• UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support

• 8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN

• Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities

• Powered by fast 1.7 GHz quad-core processor

Specifications:

Mechanical

• Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

• Weight: 3.9 kg (8.6 lb)

• Enclosure materials: Aluminium CNC, SGCC steel

• Mount material: SGCC steel

Hardware

• Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz

• System memory: 4 GB DDR4

• On-board storage: 16 GB eMMC

• Management interface:   Ethernet

Bluetooth

• Networking interface:     (8) LAN: GbE RJ45 ports

(1) WAN: GbE RJ45 port

• SFP+ interface:       (1) LAN: 10G SFP+

(1) WAN: 10G SFP+

• IDS/IPS throughput: 3.5 Gbps *

* Measured with iPerf3.

• Power method:      (1) Universal AC Input, 100—240V AC, 50/60 Hz

(1) USP-RPS DC input

• Power supply: AC/DC, internal, 50W

• Supported voltage range: 100—240V AC

• Max. power consumption: 33W

• ESD/EMP protection: Air: ± 15kV, contact: ± 8kV

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Operating temperature: -10° to 40° C (14° to 104° F)

• Operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

Gateway Features

Performance

• Redundant WAN with failover and load balancing

• WiFi QoS with UniFi APs

• Application, domain, and country-based QoS

• Application and device type identification

• Additional internet failover with LTE Backup

• Internet quality and outage reporting

Next-generation security

• Application-aware firewall rules

• Signature-based IPS/IDS threat detection

• Content, country, domain, and ad filtering

• VLAN/subnet-based traffic segmentation

• Full stateful firewall

Advanced networking

• License-free SD-WAN

• WireGuard, L2TP and OpenVPN server

• OpenVPN client

• OpenVPN and IPsec site-to-site VPN

• One-click Teleport and UID VPN

• Policy-based WAN and VPN routing

• DHCP relay

• Customizable DHCP server

• IGMP proxy

• IPv6 ISP support
