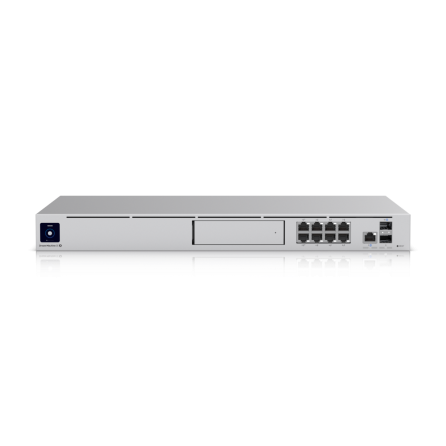

Ubiquiti UDM-SE Gateway (8) GbE RJ45 (1) 10G SFP+ Ports Dream Machine Special Edition

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.

Includes full UniFi application suite for device management

3.5+ Gbps routing with IDS/IPS

(1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE

(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports

(1) 3.5" NVR HDD bay

Built-in 128 GB SSD for NVR detection recordings

Specifications:

Mechanical

• Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

• Weight 5 kg (10.9 lb)

• Enclosure material Aluminium CNC, SGCC steel

• Mount material SGCC steel

Hardware

• Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz

• System memory: 4 GB DDR4

• On-board storage: 16 GB eMMC / Integrated 128 GB SSD

• Management interface: Ethernet / Bluetooth

• Networking interface LAN: (8) GbE RJ45 ports / (1) 10G SFP+ port

     WAN: (1) 2.5 GbE RJ45 port / (1) 10G SFP+ port

• PoE interface: (6) PoE (Pair A 1, 2+; 3, 6-) / (2) PoE+ (Pair A 1, 2+; 3, 6-)

• IDS/IPS throughput: 3.5 Gbps*

*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.

• Power method: (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz / (1) USP-RPS DC input, 52V DC, 3.94A

• Power supply: AC/DC, internal, 240W

• Supported voltage range: 100—240V AC

• Max. power consumption: 50W (Excluding PoE output)

• PoE budget: 180W

• Max. PoE wattage per port by PSE: PoE: 15.4W / PoE+: 30W

• Voltage range PoE mode: PoE: 44—57V / PoE+: 50—57V

• ESD/EMP protection: Air: ± 15kV, contact: ± 8kV

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Ambient operating temperature: -10 to 40° C (14 to 104° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

Gateway Features

• Performance Redundant WAN with failover and load balancing

WiFi QoS with UniFi APs

Application, domain, and country-based QoS

Application and device type identification

Additional internet failover with LTE Backup

Internet quality and outage reporting

• Next-generation security: Application-aware firewall rules

Signature-based IPS/IDS threat detection

Content, country, domain, and ad filtering

VLAN/subnet-based traffic segmentation

Full stateful firewall

• Advanced networking License-free SD-WAN

WireGuard, L2TP and OpenVPN server

OpenVPN client

OpenVPN and IPsec site-to-site VPN

One-click Teleport and Identity VPN

Policy-based WAN and VPN routing

DHCP relay

Customizable DHCP server

IGMP proxy

IPv6 ISP support

LEDs

• Ethernet White: link/activity

• SFP+: White: link/activity

• HDD: White: disk activity / Amber: disk error

• RPS Blue: ready
