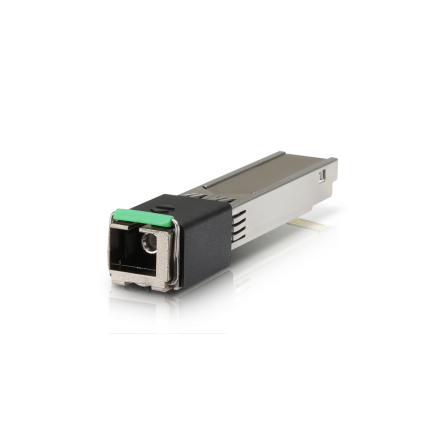

Ubiquiti UF-Instant (1) GPON (1) GbE direct SFP Cage Connect Ports

Compact GPON customer-premises equipment (CPE) with a 1G SFP interface.

Specifications:

• Dimensions: 69.5 x 13.7 x 11.3 mm (2.7 x 0.5 x 0.5")

• Weight: 30 g (1 oz)

• Enclosure materials: Zinc alloy, stainless steel

Hardware

• Networking interface: (1) SC/APC, ITU-G.984 GPON WAN / (1) SGMI, Ethernet LAN

• Management interface: Ethernet In-Band / PON

• Power method: SFP

• Supported voltage range: 3.3V

• Max. power consumption: 2W

• Total non-blocking line rate: Downstream 2.488 Gbps / Upstream1.244 Gbps

• Normal range of optical module: TX 0.5 to 5 dBm / RX -8 to -28 dBm

• Ambient operating temperature: ‐10 to 45° C (14 to 113° F)

• Operating Humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Fiber

• Operating wavelength: TX 1310 nm / RX 1490 nm

• Line code: Scrambled NRZ

• Optical interface nominal bit rate: Downstream 2488.32 Mbit/s / Upstream 1244.16 Mbit/s

• Physical reach: 20 km
