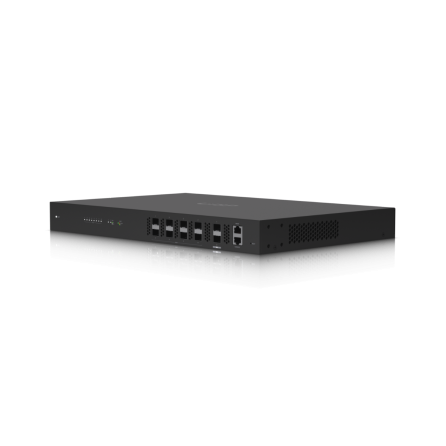

Ubiquiti UF-OLT OLT (8) GPON OLT SFP (2) 10 Gb SFP+ Ports

Eight-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 1,024 clients (128 per port).

Specifications:

• Dimensions: 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")

• Weight: Without mounting brackets: 4.4 kg (9.7 lb)

• With mount brackets: 4.5 kg (9.9 lb)

• Enclosure material: SGCC steel

Hardware

• Networking interface: (8) GPON OLT SFP ports / (2) 10 Gbps SFP+ ports

• Management interface: (1) Ethernet Out-of-Band / (1) Ethernet In-Band / (1) RJ45 Serial Console port / Bluetooth

• Power method: Universal input, 100—240V AC, 50/60 Hz

• Power supply: (2) Hotswap AC/DC PSU

• Supported voltage range: 100—240V AC

• Max. power consumption: 40W (Excluding SFP modules)

• Button: (1) Factory reset

• Ambient operating temperature: -10 to 45° C (14 to 113° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

LEDs

• Power: (1) Blue/white

Blinking blue: reset to default

Steady blue: system is booting

Steady white: service is ready

• GPON OLT SFP: (8) White / Steady/blinking white: link/activity

• SFP+: (2) White/green / White:10G / Green: 1G / Steady on after link is up; blinking while active

• Ethernet: (1) Green / Green: 1G / Steady on after link is up; blinking while active

Software

• Mode: OLT GPON Core and Layer 2 Ethernet switch

• VLAN: 4062 VLANs supported

• Advanced QoS: Support 8 priority queues per user port and traffic classification

• Concurrent clients: 1024 ONUs/ONTs registered

• Ubiquiti specific features: UISP Mobile App

Fiber

• Operating wavelength: TX 1490 nm / RX 1310 nm

• Line code Scrambled NRZ

• Optical interface nominal bit rate: Downstream 2488.32 Mbit/s / Upstream 1244.16 Mbit/s

• Physical reach 20 km
