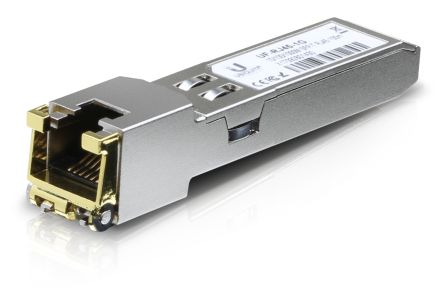

Ubiquiti UF‑RJ45‑1G Cooper 10/100/1000 Mbps Module

Overview

Ubiquiti Networks offers a variety of U® Fiber modules to suit your fiber connectivity applications.

Indoor Runs

For convenient multi-mode connections that extend beyond the 100-meter limitation of Ethernet cabling, use the UF-MM-10G for distances of up to 300 m and speeds of up to 10 Gbps, or use the UF-MM-1G for distances of up to 550 m and speeds of up to 1 Gbps.

The UF-RJ45-1G allows you to connect a copper Ethernet cable to a SFP or SFP+ slot for distances of up to 100 m and speeds of up to 1 Gbps.

Outdoor Use

For long-distance single-mode runs, use the UF-SM-10G for distances of up to 10 km at 10 Gbps, or use the UF-SM-1G for distances of up to
3 km at 1 Gbps. To protect DC power and fiber, deploy EdgePoint® with EdgePowerTM.

Deploy a BiDi (BiDirectional) model, UF-SM-1G-S or UF-SM-10G-S,
to maximize re-use of existing infrastructure. You must deploy
a BiDi model as a paired set of modules because the pair uses two different wavelengths, upstream and downstream, on a single fiber.

Model

• Supported Media Multi-Mode Fiber
• Connector Type RJ45
• Data Rate 10/100/1000 Mbps
• Cable Distance 100 m
• Operating Temperature 0 to 70° C (32 to 158° F)
• Pack Options  20-Pack

Specifications

• Connector LC-LC
• Fiber Mode 50 / 125 μm
• Fiber Type Duplex
• Cable Length
• UOC-0.5 0.5m
• UOC-1 1m
• UOC-2 2m
• UOC-3 3m
• UOC-5 5m
• Cable Jacket PVC
• Cable Standard OM3
• Insertion Loss ≤ 0.3 dB
• Polish UPC to UPC
• Jacket OD 2.0 mm
• Wavelength 850 / 1310 nm
• Jacket Color Aqua
• Repeatability ≤ 0.1 dB
• Durability ≤ 0.2 dB (1000 Times Mating)
• Return Loss ≤ 50 dB
• Operating Temperature -40 to 75° C (-40 to 167° F)
