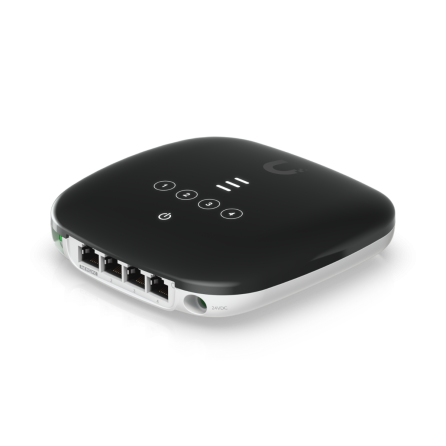

Ubiquiti UF‑WIFI-US GPON Router (1) GPON (4) GbE Ports WiFi

GPON customer-premises equipment (CPE) with a built-in WiFi router.

Specifications:

• Dimensions: 126.3 x 126.1 x 31.7 mm (5 x 5 x 1.3")

• Weight: 190 g (6.7 oz)

• Enclosure material: UV-stabilized polycarbonate (PC110U)

Hardware

• Networking interface: (1) SC/APC, ITU-G.984 GPON WAN port / (4) GbE RJ45 LAN ports / WiFi 802.11n

• Management interface: Ethernet In-Band

PON

• Power method: DC Jack, 24V DC / 24V Passive PoE (Pins 4, 5+; 7, 8-)

• Power supply: Universal AC/DC adapter, 100—240V AC, 50/60 Hz, 24V/0.5A

• Supported voltage range: 10–30V DC (passive PoE) / 5V DC (adapter)

• Max. power consumption 7W

• Total non-blocking line rate: Downstream: 2.488 Gbps / Upstream: 1.244 Gbps

• Normal range of optical module: TX: 1.5 to 5 dBm / RX: -8 to -28 dBm

• Max. WiFi TX power: 2.4 GHz: 20 dBm MIMO 2.4 GHz 2 x 2

• Max. WiFi radio rate 2.4 GHz: 300 Mbps

• Antenna gain: 2.4 GHz 1 dBi

• Button: (1) Factory reset

• Ambient operating temperature: -10 to 45° C (14 to 113° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: FCC, IC, CE

LEDs

• PON status: (3) Signal LEDs

All-OFF: bootup

1x red: signal too low (< -28 db)

1x white: signal low (>= -28 db)

2x white: signal good (>= -25 db)

3x white: signal strong (>= -11 db)

1x red + 2x white: signal too strong (>= -8 db)

3x red: no signal

LEDs alternate between 3x red and a signal strength indicator: No authority

• Ethernet:      Steady white: link up

Blinking white: activity

OFF: link down

• Power: White: ON

Software

• Mode: ONU/ONT layer 2/3 Ethernet switch

• Services: Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features

• Utilities: Dashboard, monitoring, alarms, and logs

• Other: Remote reset, remote reboot, remote firmware upgrade, VLAN support

• Security: GEM Port Encryption

• Ubiquiti specific features: UISP Mobile App

• WiFi standards: 802.11 b/g/n

• Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)

Fiber

• Operating wavelength: TX 1310 nm / RX 1490 nm

• Line code Scrambled NRZ

• Optical interface nominal bit rate: Downstream 2488.32 Mbit/s / Upstream 1244.16 Mbit/s

• Physical reach 20 km

Supported Data Rates

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
