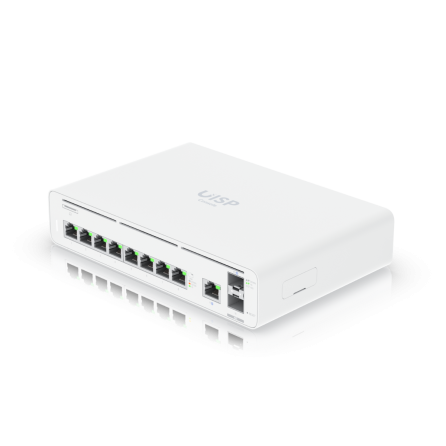

Ubiquiti UISP-Console Switch (9) GbE RJ45 (2) 10G SFP+ Ports

UISP host console with an integrated switch and multi-gigabit Ethernet gateway.

Specifications:

• Dimensions: 210.4 x 140.2 x 43.7 mm (8.3 x 5.5 x 1.7")

• Weight: 1.5 kg (3.2 lb)

• Enclosure materials: SGCC steel, polycarbonate

Hardware

• Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz

• Memory: 4 GB DDR4

• Onboard flash storage: 16 GB eMMC

• Onboard storage: 128 GB SSD

• Card slot: (1) microSD

• Networking interface: (8) LAN: GbE RJ45 ports / (1) LAN: 1/10G SFP+ port /  (1) WAN: GbE RJ45 port / (1) WAN: 1/10G SFP+ port

• Management interface: Ethernet In-band / Bluetooth

• Power method: (1) External AC/DC adapter / (1) Power TransPort DC input 27V DC, 1.5A

• Power supply: 24V DC, 2.5A power adapter (included)

• Supported voltage range: 24—28V DC

• Max. power consumption: 30W

• ESD/EMP protection: Air: ± 15kV, contact: ± 8kV

• Ambient operating temperature: -10 to 50° C (14 to 122° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

LEDs

• System: Status

• RJ45 data ports: Speed/link/activity

• SFP+ data ports: Speed/link/activity
