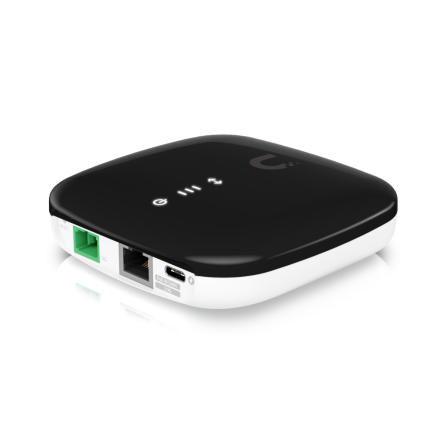

Ubiquiti UISP-FIBER-XG (1) XG-PON (1) 2.5GbE RJ45 Ports 2.5 Gbps uplink/10 Gbps

An optical network unit that can deliver 2.5 Gbps uplink/10 Gbps downlink speeds over distances up to 20 km.

Specifications:

• Dimensions: 100 x 100 x 27 mm (3.9 x 3.9 x 1.1")

• Weight: 220 g (0.49 lb)

• Enclosure material: UV-stabilized polycarbonate

Hardware

• Networking interface: (1) SC/APC, ITU-G.987 XGPON WAN port / (1) 100/1,000/2,500 MbE RJ45 LAN ports

• Management interface: Ethernet in-band / PON

• PoE interface: (1) PoE in, 24V DC passive PoE

• Memory: 256 MB DDR

• Onboard flash storage: 32 MB NOR

• Max. power consumption: 6W

• Power method: USB-C 5V DC, 3A / 24V DC passive PoE

• Power supply: 5V DC, 3A power adapter / Passive PoE 2-pair (4, 5+; 7, 8-)

• Supported voltage range: 5V DC adapter / 10–30V DC passive PoE

• Total non-blocking line rate: Downstream: 9.95 Gbit/s / Upstream: 2.44 Gbit/s

• Normal TX range of optical module: 2 to 7dBm

• Normal RX range of optical module: -9 to -27dBm

• Button: (1) Factory reset

• Ambient operating temperature: -15 to 45° C (5 to 113° F)

• Ambient operating humidity: 10 to 95% non-condensing

• Certifications: CE, FCC, IC

Fiber

• Operating wavelength: TX: 1,270nm / RX: 1,577nm

• Line code: Scrambled NRZ

• Physical reach: 20 km

LEDs

• Power: White: ON

• Ethernet:     Steady white: link up

Blinking white: activity

OFF: link down

• PON status: (3) signal LEDs

All-OFF: bootup

1x orange: signal too low (< -27 dbm)

1x white: signal low (>= -27 dbm)

2x white: signal good (>= -24 dbm)

3x white: signal strong (>= -12 dbm)

1x orange + 2x white: signal too strong (>= -9 dbm)

3x orange: no signal

LEDs alternate between orange + white + orange and a signal strength indicator: no authority
