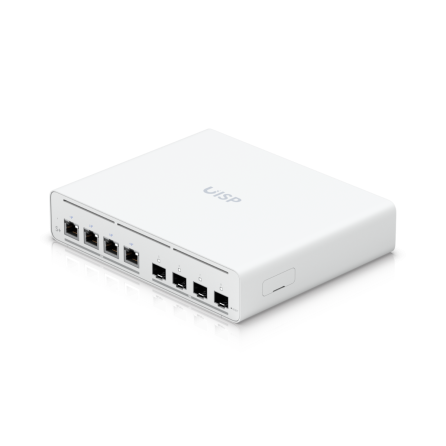

Ubiquiti UISP-S-Plus Switch (4) 2.5 GbE RJ45 (4) 10G SFP+ Ports 160W

Mechanical

• Dimensions 210.4 x 170.2 x 43.7 mm (8.3 x 6.7 x 1.7")

• Weight 1.75 kg (3.9 lb)

• Enclosure materials SGCC steel, polycarbonate/acrylonitrile butadiene styrene

Hardware

• Processor: Dual-core ARM®v8 Cortex®-A55 at 1.4 GHz

• Memory: 1 GB DDR4

• Onboard flash storage: 256 MB NAND

• Networking interface: (4) 1/2.5 GbE RJ45 LAN ports / (4) 1/10G SFP+ ports

• Management interface: Ethernet In-band / Bluetooth

• Total non-blocking throughput: 50 Gbps

• Switching capacity: 100 Gbps

• Forwarding rate: 74.4 Mpps

• Power method: (1) External AC/DC adapter / (1) Power TransPort DC input 27V DC, 7.04A

• Power supply: 27V DC, 7.04A power adapter (included)

• Supported voltage range: 24–28V DC

• Max. power consumption: 25W (Excluding PoE output.)

• ESD/EMP protection: Air: ± 15 kV, contact: ± 8 kV

• Ambient operating temperature: -10 to 50° C (14 to 122° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

PoE

• PoE interface: (4) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 4

• Total available PoE: 160W (With included power adapter.)

• Max. passive PoE wattage per port: 2-pair mode: 20W/27V DC / 4-pair mode: 40W/27V DC

• Passive PoE voltage range 27V DC

LEDs

• System: Status

• RJ45 data ports: PoE / Speed/link/activity

• SFP+ data ports: Link/activity
