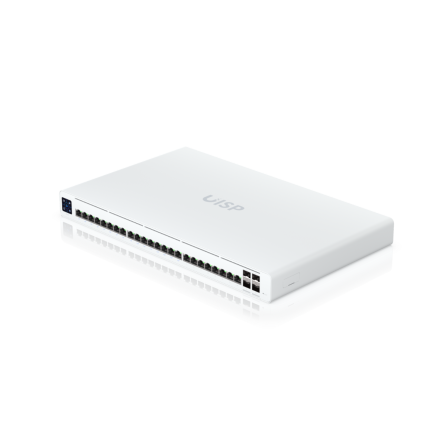

Ubiquiti UISP-S-Pro Switch (24) GbE RJ45 (4) SFP+ Ports PoE 220W

220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.

Specifications:

• Dimensions: 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")

• Weight: 4 kg (8.8 lb)

• Enclosure materials: SGCC steel, polycarbonate/acrylonitrile butadiene styrene

Hardware

• Networking interface: (24) GbE RJ45 LAN ports / (4) 1/10G SFP+ ports

• Management interface: Ethernet In-band / Bluetooth

• Total non-blocking throughput: 64 Gbps

• Switching capacity: 128 Gbps

• Forwarding rate: 95.23 Mpps

• Power method: (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz / (1) Power TransPort DC input 27V DC, 9.3A

• Power supply: AC/DC, Internal, 250W

• Supported voltage range: 100—240V AC

• Max. power consumption: 30W (Excluding PoE output)

• ESD/EMP protection: Air: ± 15 kV, contact: ± 8 kV

• LCM display: (1) 1.3" touchscreen

• Ambient operating temperature: -10 to 50° C (14 to 122° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

PoE

• PoE interface: (16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16

• Total available PoE: 220W

• Max. passive PoE wattage per port: 30W/27V DC

• Passive PoE voltage range: 27V DC

LEDs

• RJ45 data ports: PoE / Speed/link/activity

• SFP+ data ports: Speed/link/activity
