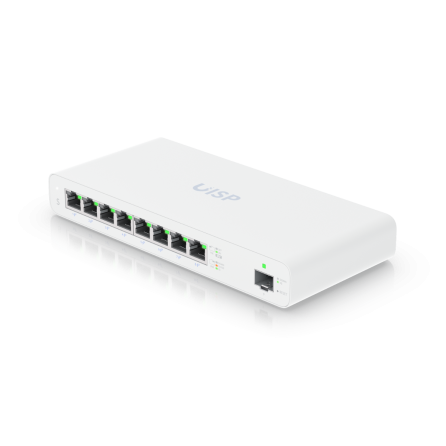

Ubiquiti UISP-S Switch (8) GbE RJ45 (1) SFP Ports PoE 110W

Eight-port, Layer 2, Gigabit PoE switch designed for MicroPoP applications and building secure, high-performance networks.

Specifications:

• Dimensions: 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1")

• Weight: 610 g (1.3 lb)

• Enclosure material: Polycarbonate

Hardware

• Total non-blocking throughput: 9 Gbps

• Switching capacity: 18 Gbps

• Forwarding rate: 13.392 Mpps

• Networking interface: (8) GbE RJ45 ports / (1) 1G SFP port

• Management interface: Ethernet In-band / Bluetooth BLE

• Power method: External AC/DC adapter

• Power supply: 27V DC, 4.4A power adapter (included)

• Supported voltage range: 24—28V DC

• Max. power consumption: 8W (Excluding PoE output)

• ESD/EMP protection: Air: ± 15kV, contact: ± 8kV

• Ambient operating temperature: -10 to 50° C (14 to 122° F)

• Ambient operating humidity: 5 to 95% non-condensing

• Certifications: CE, FCC, IC

PoE

• PoE interface: (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)

• Total available PoE: 110W

• Max. passive PoE wattage per port: 30W/27V DC

• Passive PoE voltage range: 27V DC

LEDs

• RJ45 data ports: PoE / Speed/link/activity

• SFP data ports: Link/activity
