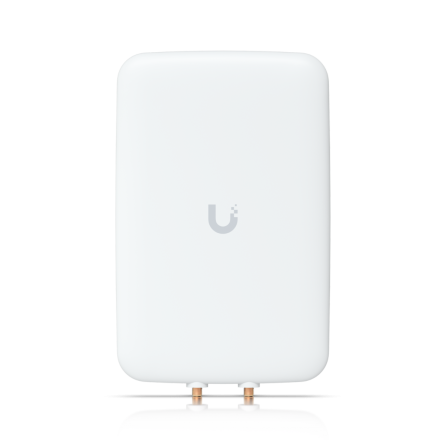

Ubiquiti UMA-D Antenna AC Mesh Dual-Band

Specifications

• Dimensions: 201.3 x 128 x 32.5 mm / (7.9 x 5 x 1.3")

• Without mount: 400 g (0.9 lb)

• With mount: 480 g (1.1 lb)

• Enclosure Material

• Outdoor UV-stabilized plastic

Hardware

• Supported Frequency Range: 2.4–2.5 GHz / 5.1–5.9 GHz

• RF Connections: (2) RP-SMA

• Gain: 5 GHz: 15 dBi / 2.4 GHz: 10 dBi

• HPOL Beamwidth: 5 GHz: 45° / 2.4 GHz: 90°

• VPOL Beamwidth: 5 GHz: 45° / 2.4 GHz: 90°

• Elevation Beamwidth: 5 GHz: 45° / 2.4 GHz: 90°

• Max VSWR: 2:1

• Polarization: Dual-linear

• Cross-Pol Isolation:5 GHz: 30 dB / 2.4 GHz: 25 dB

• NDAA Compliant ✓
