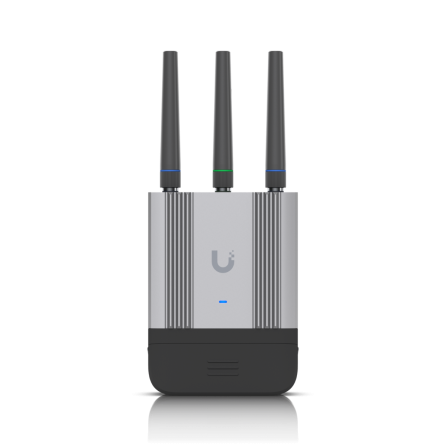

Ubiquiti UMR-Industrial Router Mobile Industrial LTE Cat 4 (2) GbE RJ45 Ports

Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.

• Site-to-site VPN and VPN client routing

• (2) GbE ports with (1) PoE output*

• Powered using PoE, USB Type-C, or 4-pin DC power socket

• Outdoor GPS location tracking

• Flexible wall, pole, and DIN rail mounting

• Weatherproof (outdoor exposed) with the included cover

• Optional Mobility Cloud subscription**

Specifications:

• Dimensions Without outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3")

• With outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")

• Weight Device: 360 g (12.7 oz)

• Device with outdoor cover: 395 g (13.9 oz)

• DIN rail/wall mounts: 25 g (0.9 oz)

• Enclosure material: Polycarbonate, aluminum

• Mount material: Wall/pole mount: polycarbonate

• DIN rail mount: polycarbonate

• Pole mount diameter: 1–2" on pipe outer diameter

• Wind loading: 38.8 N at 200 km/h (8.7 lbf at 125 mph)

• Weatherproofing Device with outdoor cover: IP66

Hardware

• Management interface: Ethernet / WiFi

• Networking interface: (2) GbE RJ45 ports / LTE Category 4 radio / WiFi 4

• PoE interface: (1) PoE input / (1) PoE output* (Max. 10W) *Requires a PoE+ switch.

• Power supply: UniFi PoE switch (48—54V DC)

    USB Type-C (5V DC)

     4-pin* ATX DC power socket (9—30V DC)

     *Pin 1 for Power + and Pin 2 for Ground –. Please refer to the Installation Guide for detailed power socket pinout.

• Max. power consumption: 12.5W

• SIM: nano-SIM (4FF)

• LTE bands: B2, B4, B5, B12, B13, B14, B25, B26, B66, B71

• LTE throughput speed* Download 150 Mbps / Upload 50 Mbps

*Speed depends on network coverage and performance at the device location.

• WiFi standards: 802.11 b/g/n, WiFi 2.4G, 20/40 MHz

• Max. WiFi TX power: 22 dBm

• WiFi MIMO: 2 x 2

• GPS: Yes

• Antenna SMA ports: (1) Mobile 1: SMA female connector, supports 1Tx and 1Rx

    (1) Mobile 2: SMA female connector, supports 1Rx only

    (1) GPS: SMA female connector

    (2) WiFi: RP-SMA female connectors

   Note: Ensure all SMA / RP-SMA connectors are secured with antennas or the provided caps to maintain weatherproofing.

• External antennas: (2) Mobile/LTE antennas with SMA male connectors

 (1) GPS antenna with SMA male connector

 (2) WiFi antennas with RP-SMA male connectors

• LED Status: blue/white

• Button: Factory reset

• Mounting: DIN rail/wall/pole mount (Included)

• Ambient operating temperature: -40 to 70° C (-40 to 158° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®

Supported WiFi Data Rates

• 802.11b 1, 2, 5.5, 11 Mbps

• 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)
