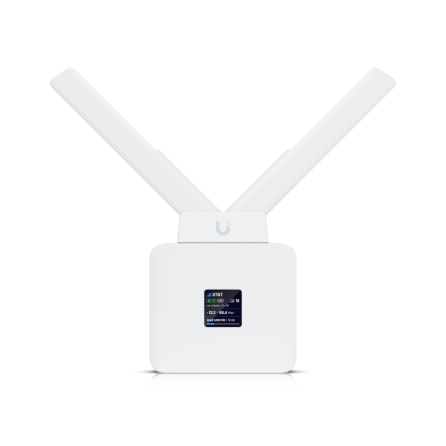

Ubiquiti UMR-US Mobile Router WiFi LTE

Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Use the pre-installed AT&T nano-SIM with three data plan options for LTE data, or bring your own AT&T nano-SIM.

LTE category 4 mobile WiFi router

Pre-installed AT&T nano-SIM*

VPN client routing

Automatic failover between LTE and wired WAN

(2) GbE ports with (1) PoE output**

Powered using PoE, USB Type-C, or 4-pin DC power socket

Integrated GPS

Optional Mobility Cloud subscription***

Technical Specifications

Mechanical

• Dimensions 220.6 x 89.8 x 28.8 mm (8.7 x 3.5 x 1.1")

• Weight Without mount: 257 g (9.1 oz)

• With mount: 303 g (10.7 oz)

• Enclosure material Polycarbonate

• Mount material Wall mount: polycarbonate

• DIN rail mount: steel

Hardware

• Processor: 74 Kc MIPS processor at 775 MHz

• Memory: 128 MB DDR2

• Networking interface: (2) GbE RJ45 ports / LTE Category 4 radio / WiFi 4

• Management interface: Ethernet / WiFi

• PoE interface: (1) PoE input / (1) PoE output* (Max. 10W) / *Requires a PoE+ switch.

• SIM: Pre-installed AT&T data-only nano SIM

• LTE bands: B2, B4, B5, B12, B14, B66

• Operator: AT&T network

• LTE throughput speed*: Download 150 Mbps / Upload 50 Mbps

• *Speed depends on network coverage and performance at the device location.

• WiFi standards: 802.11 b/g/n, WiFi 2.4G, 20/40 MHz

• GPS: Yes

• Antennas: (1) External LTE antenna (main + aux) with TS9 male connectors / (1) Internal WiFi 2.4 GHz antenna / (1) Internal GPS antenna

• Power supply: UniFi PoE switch (48—54V DC, 0.625A) / USB Type-C (5V DC, 3A) / 4-pin * ATX DC power socket (9V DC, 1A)

• Please refer to the Installation Guide for power socket pinout.

• Max. power consumption: 9W

• LCM display: 1.3" screen

• Button: Factory reset

• Mounting: DIN rail/wall (Included)

• Operating temperature: -20 to 45° C (-4 to 113° F)

• Operating humidity: 5 to 95% noncondensing

• Certifications: FCC, IC, PTCRB, AT&T

Supported WiFi Data Rates:

• 802.11b 1, 2, 5.5, 11 Mbps

• 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n (WiFi 4) 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
