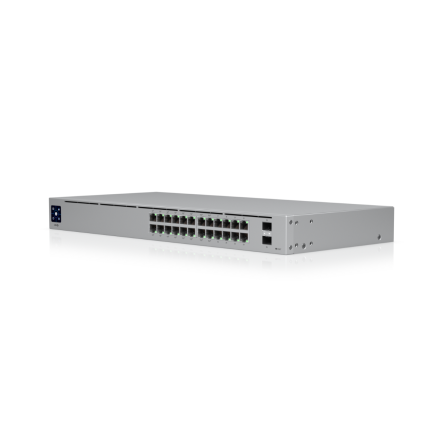

Ubiquiti USW-24-POE Switch (16) GbE PoE+ (8) GbE RJ45 (2) 1G SFP Ports 95W

A 24-port, Layer 2 PoE switch with a fanless cooling system.

(16) GbE PoE+, (8) GbE ports

(2) 1G SFP ports

95W total PoE availability

Fanless, silent cooling

Specifications:

• Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")

• Weight: Without mounting brackets: 3 kg (6.6 lb)

• With mounting brackets: 3.1 kg (6.8 lb)

• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band

• Networking interface: (24) GbE RJ45 ports / (2) 1G SFP ports

• PoE interface: (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)

• Total non-blocking throughput: 26 Gbps

• Switching capacity: 52 Gbps

• Forwarding rate: 38.69 Mpps

• Power method: Universal input, 100—240V AC, 50/60 Hz

• Power supply: AC/DC, internal, 120W

• Supported voltage range: 100—240V AC

• Max. power consumption: 25W (Excluding PoE output)

• Total available PoE: 95W

• Max. PoE wattage per port by PSE: PoE+: 32W

• Voltage range PoE mode: PoE: 44—57V / PoE+: 50—57V

• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Shock and vibration: ETSI300-019-1.4 Standard

• Ambient operating temperature: -5 to 40° C (23 to 104° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features:   IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features

LEDs

• System Status

• Ethernet PoE / Speed/link/activity

• SFP Link/activity
