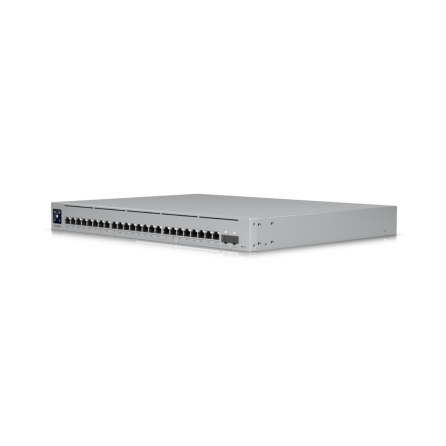

Ubiquiti USW-Enterprise-24-PoE Switch (12) 2.5GbE (12) GbE PoE+ RJ45 (2) 10G SFP+ Ports 400W

A 24-port, Layer 3 switch with 2.5 GbE PoE+ output.

(12) 2.5 GbE, (12) GbE; all PoE+ ports

(2) 10G SFP+ ports

400W total PoE availability

DC power backup-ready

Layer 3 switching

Specifications:

• Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

• Weight Without mounting brackets: 5.1 kg (11.3 lb)

• With mounting brackets: 5.2 kg (11.5 lb)

• Enclosure material SGCC steel

Hardware

• Management interface: Ethernet In-Band

• Networking interface: (12) GbE RJ45 ports / (12) 2.5 GbE RJ45 ports / (2) 10G SFP+ ports

• PoE interface: (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)

• Total non-blocking throughput: 62 Gbps

• Switching capacity: 124 Gbps

• Forwarding rate: 92.25 Mpps

• Power method: (1) Universal input, 100—240V AC, 8.5A Max., 50/60 Hz / (1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A

• Power supply: AC/DC, internal, 550W

• Supported voltage range: 100—240V AC

• Max. power consumption: 60W (Excluding PoE output)

• Total available PoE: 400W

• Max. PoE+ wattage per port by PSE: 34.2W

• Voltage range PoE mode: PoE: 44— 57V / PoE+: 50—57V

• Services SMB Layer 3 PoE GbE switch

• ESD/EMP protection Air: ± 16kV, contact: ± 12kV

• LCM display (1) 1.3" color touchscreen

• Button Factory reset

• Ambient operating temperature -5 to 40° C (23 to 104° F)

• Ambient operating humidity 10 to 95% noncondensing

• Certifications CE, FCC, IC

Switching Features

• Layer 2 features:   IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features:   DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

LEDs

• System: Status

• Ethernet:  Link/activity

• SFP+: Link/activity
