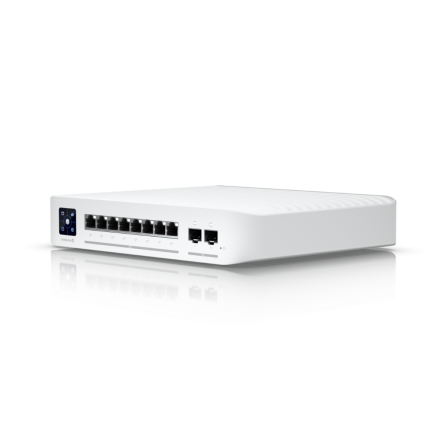

Ubiquiti USW-Enterprise-8-PoE Switch (8) 2.5GbE RJ45 PoE+ (2) 10G SFP+ Ports 120W

An 8-port, Layer 3 switch with 2.5 GbE PoE+ output.

(8) 2.5 GbE PoE+ ports

(2) 10G SFP+ ports

120W total PoE availability

Specifications:

• Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

• Weight: 2.4 kg (5.3 lb)

• Enclosure material: Polycarbonate

• Mount material: Polycarbonate

Hardware

• Management interface: Ethernet In-Band

• Networking interface: (8) 2.5 GbE RJ45 ports / (2) 10G SFP+ ports

• PoE interface: (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

• Total non-blocking throughput: 40 Gbps

• Switching capacity: 80 Gbps

• Forwarding rate: 59.52 Mpps

• Power method: Universal input, 100—240V AC, 2A Max., 50/60 Hz

• Power supply: AC/DC, internal, 150W

• Supported voltage range: 100—240V AC

• Total available PoE: 120W

• Max. PoE+ wattage per port by PSE: 32W

• Voltage range PoE mode: PoE: 44—57V / PoE+: 50—57V

• LCM Display: (1) 1.3" color touchscreen

• Mounting: Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE)

• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV

• Ambient operating temperature: -5 to 45° C (23 to 113° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features:   IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features:   DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

LEDs

• System Status

• Ethernet Link/activity

• SFP+ Link/activity
