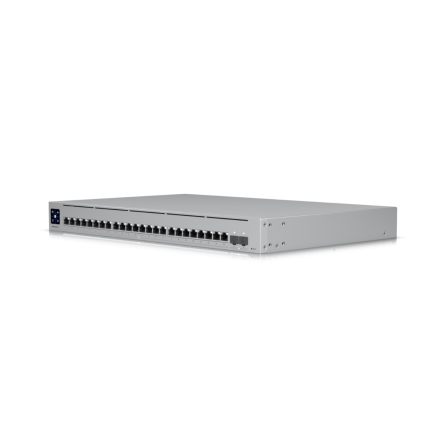

Ubiquiti USW-EnterpriseXG-24 Switch (24) 10GbE RJ45 (2) 25G SFP28 Ports

(24) 10GbE RJ45 ports

(2) 25G SFP28 ports

(1) USP RPS DC input for power redundancy

1.3" LCM color touchscreen with AR switch management

Specifications:

Mechanical

• Dimensions 442 x 44 x 285 mm (17.4 x 1.7 x 11.2")

• Weight Without mounting brackets: 4.47 kg (9.85 lb)

• With mounting brackets: 4.57 kg (11.02 lb)

• Enclosure material SGCC steel

Hardware

• Networking interface (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet

• Management interface Ethernet In-Band

• SFP28 interface (2) 25G SFP28 ports*

*The two SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.

• Total non-blocking throughput 290 Gbps

• Switching capacity 580 Gbps

• Forwarding rate 431.52 Mpps

• Max. power consumption 100W

• Power method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz

• (1) USP-RPS DC input, 11.5V DC, 8.7A

• Power supply AC/DC, internal, 100W

• Services SMB Layer 3 GbE switch

• ESD/EMP protection Air: ± 16kV, contact: ± 12kV

• LCM display (1) 1.3" LCM color touchscreen

Bootup animation: bootup in progress

Firmware upgrade icon: firmware upgrading

• Button Factory reset

• Operating temperature -5 to 40° C (23 to 104° F)

• Operating humidity 10 to 95% noncondensing

• Certifications CE, FCC, IC

LEDs

• System Status

• Ethernet Link/activity
