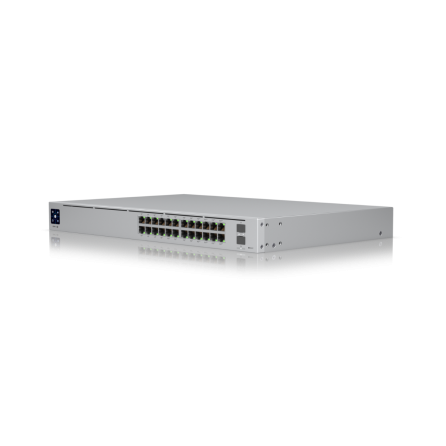

Ubiquiti USW-Pro-24-POE Switch (16) GbE PoE+ (8) GbE PoE++ (2) 10G SFP+ Ports 400W

A 24-port, Layer 3 switch capable of high-power PoE++ output.

(16) GbE PoE+, (8) GbE PoE++ ports

(2) 10G SFP+ ports

400W total PoE availability

DC power backup-ready

Layer 3 switching

Near-silent cooling

Specifications:

• Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

• Weight: Without mounting brackets: 4.3 kg (9.5 lb)

• With mounting brackets: 4.4 kg (9.7 lb)

• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band

• Networking interface: (24) GbE RJ45 ports / (2) 1/10G SFP+ ports

• PoE interface: (16) PoE/PoE+ (Pins 1, 2+; 3, 6-) / (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

• Total non-blocking throughput: 44 Gbps

• Switching capacity: 88 Gbps

• Forwarding rate: 65.472 Mpps

• Power method: (1) Universal input, 100—240V AC, 50/60 Hz / (1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A

• Power supply: AC/DC, internal, 450W

• Supported voltage range: 100—240V AC

• Max. power consumption: 50W (Excluding PoE output)

• Total available PoE: 400W

• Max. PoE wattage per port by PSE: PoE+: 32W / PoE++: 64W

• Voltage range PoE mode: PoE: 44—57V / PoE+: 50—57V

• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Shock and vibration: ETSI300-019-1.4 Standard

• Ambient operating temperature: -5 to 40° C (23 to 104° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features:   IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features:   DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

LEDs

• System: Status

• Ethernet : PoE / Speed/link/activity

• SFP+: Link/activity

• RPS: Status
