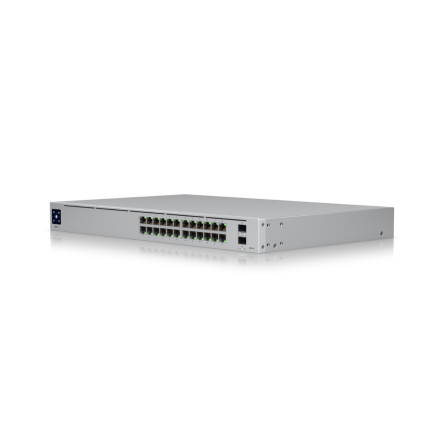

Ubiquiti USW-Pro-24 Switch (24) GbE RJ45 (2) 10G SFP+ Ports

A 24-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.

(24) GbE ports

(2) 10G SFP+ ports

DC power backup-ready

Layer 3 switching

Silent cooling

Specifications:

• Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

• Weight: Without mounting brackets: 3.5 kg (7.7 lb)

• With mounting brackets: 3.6 kg (7.9 lb)

• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band

• Networking interface: (24) GbE RJ45 ports / (2) 1/10G SFP+ ports

• Total non-blocking throughput: 44 Gbps

• Switching capacity: 88 Gbps

• Forwarding rate: 65.472 Mpps

• Power method: (1) Universal input, 100—240V AC, 50/60 Hz / (1) USP-RPS DC input 11.5V DC, 2.61A

• Power supply: AC/DC, internal, 36W

• Supported voltage range: 100—240V AC

• Max. power consumption: 30W

• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Shock and vibration: ETSI300-019-1.4 Standard

• Ambient operating temperature: -5 to 45° C (23 to 113° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features:   IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features:   DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

LEDs

• System: Status

• Ethernet: Speed/link/activity

• SFP+: Speed/link/activity

• RPS: Status
