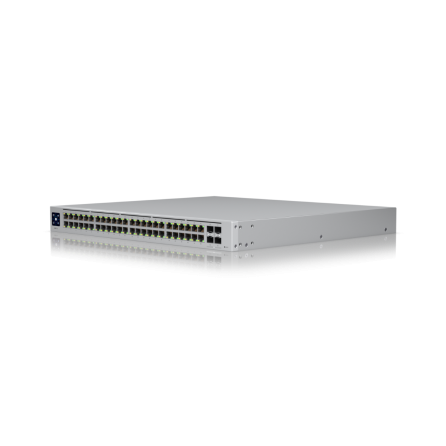

Ubiquiti USW-Pro-48 Switch (48) GbE RJ45 (4) 10G SFP+ Ports

A 48-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.

(48) GbE ports

(4) 10G SFP+ ports

DC power backup-ready

Layer 3 switching

Silent cooling

Specifications:

• Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

• Weight: Without mounting brackets: 4 kg (8.8 lb)

• With mounting brackets: 4.1 kg (9 lb)

• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band

• Networking interface : 48) GbE RJ45 ports / (4) 1/10G SFP+ ports

• Total non-blocking throughput 88 Gbps

• Switching capacity: 176 Gbps

• Forwarding rate: 130.944 Mpps

• Power method: (1) Universal input, 100—240V AC, 50/60 Hz / (1) USP-RPS DC input, 11.5V DC, 5.22A

• Power supply: AC/DC, internal, 60W

• Supported voltage range: 100—240V AC

• Max. power consumption: 60W

• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Shock and vibration: ETSI300-019-1.4 Standard

• Ambient operating temperature: -5 to 45° C (23 to 113° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features  IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features  DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

LEDs

• System Status

• Ethernet Speed/link/activity

• SFP+ Link/activity

• RPS Status
