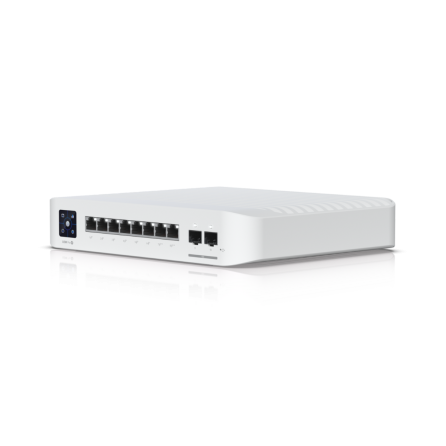

Ubiquiti USW-Pro-8-PoE Switch (6) PoE+ (2) PoE++ GbE (2) 10G SFP+ ports

• Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

• Weight: 2.1 kg (4.6 lb)

• Enclosure materials: Polycarbonate, metal

• Mount material: Polycarbonate

Hardware

• Management interface: Ethernet In-Band

• Networking interface: (8) GbE RJ45 ports / (2) 10G SFP+ ports

• PoE interface: (6) PoE/PoE+ (Pins 1, 2+; 3, 6-) / (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

• Total non-blocking throughput: 28 Gbps

• Switching capacity: 56 Gbps

• Forwarding rate: 41.664 Gbps

• Power method: Universal input, 100—240V AC, 2A Max.

• Power supply: AC/DC, internal

• Supported voltage range: 100—240V AC

• Max. power consumption: 30W (Excluding PoE output)

• Total available PoE: 120W

• Max. PoE wattage per port by PSE: PoE: 15W

       PoE+: 30W

       PoE++: 60W

• Voltage range PoE mode: PoE: 44—57V

  PoE+: 50—57V

  PoE++: 50—57V

• LCM display: (1) 1.3" touchscreen

• LEDs: RJ45 ports: link/activity

• Button: Factory reset

• Ambient operating temperature: -5 to 45° C (23 to 113° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features:   IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features:   DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks
