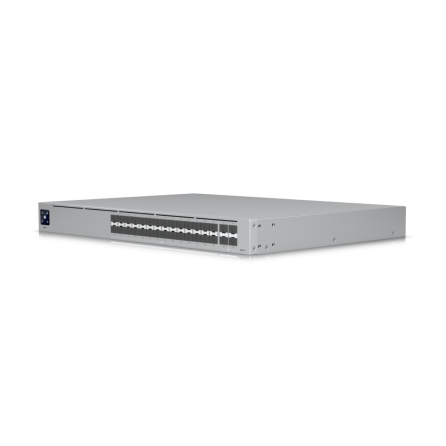

Ubiquiti USW-Pro-Aggregation Switch (28) 10G SFP+ (4) 25G SFP28 Ports

32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.

Specifications:

Mechanical

• Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

• Weight: Without mounting brackets: 4.6 kg (10.1 lb)

• With mounting brackets: 4.7 kg (10.4 lb)

• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band

• Networking interface     (28) 1/10G SFP+ ports

(4) 1/10/25G SFP28 ports*

*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.

• Total non-blocking throughput: 380 Gbps

• Switching capacity: 760 Gbps

• Forwarding rate: 565.44 Mpps

• Power method: (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz / (1) USP RPS DC input, 11.5V DC, 8.7A

• Power supply: AC/DC, internal, 100W

• Supported voltage range: 100—240V AC

• Max. power consumption: 100W

• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV

• Services SMB Layer 3 10/25 G Fiber switch

• LCM display (1) 1.3" LCM color touchscreen

• Ambient operating temperature -5 to 40° C (23 to 104° F)

• Ambient operating humidity 10 to 90% noncondensing

• Certifications CE, FCC, IC

Switching Features

• Layer 2 features  IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features  DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

LEDs

System Status

SFP28/SFP+ Link/activity
