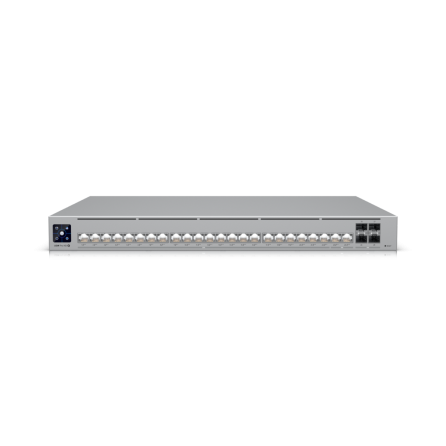

Ubiquiti USW-Pro-HD-24-PoE Switch (22) 2.5G (2) PoE++ 10G RJ-45 (4) SFP+ 10G

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Specifications:

• Dimensions: 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")

Port Layout:

• 2.5 GbE RJ45: 22 (All PoE++) (2.5G/1G/100M/10M)

• 10 GbE RJ45: 2 (All PoE++)  (10G/5G/2.5G/1G/100M)

• 10G SFP+: 4 (10G/1G)

• Max. PoE Output: Up to PoE++

• Total PoE Availability: 600W

• Redundancy: DC Power Backup

• Layer 3   ✓

• Form Factor: Rack mount (1U)

• Etherlighting™  ✓

Performance

• Switching Capacity: 230 Gbps

• Total Non-Blocking Throughput: 115 Gbps

• Forwarding Rate: 171 Mpps

• Supported VLANs: 1,000

• MAC Address Table Size: 32,000

L3 Table Size

• ARP Entries: 12,000

• IPv4 Routes: 12,000

• Packet Buffer Size: 2 MB

Access Lists

• IPv4: 128

• MAC: 128

Layer 3 Features

• DHCP Server (Local Networks) ✓

• DHCP Relay ✓

• Inter-VLAN Routing (Local Networks) ✓

• Static Routing (Local Networks)   ✓

Layer 2 Features

• LACP Port Aggregation  ✓

• STP & RSTP  ✓

• QoS (DSCP) ✓

• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓

• Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓

• IGMP Snooping ✓

• 802.1X Control ✓

• MAC-Based ACLs & Device Isolation ✓

• DHCP Snooping & Guarding ✓

• Egress Rate Limit ✓

• Flow Control ✓

• Storm Control ✓

• Multicast & Broadcast Rate Limiting ✓

• MAC Address Blocking ✓

• IP-Based ACLs & Network Isolation ✓

• MAC-Based Port Restriction ✓

• Port Isolation ✓

• Port Mirroring ✓

• Jumbo Frames ✓

• LLDP-MED ✓

• Voice VLAN ✓

• Loop Protection ✓

Hardware

PoE Ports

• PoE++: 24

• Max. PoE Wattage per Port by PSE

           PoE: 15.4W

           PoE+: 30W

           PoE++: 64W

• Max. Power Consumption: 60W (Excluding PoE Output) / 660W (Including PoE Output)

• Power Method: (1) Universal input, 100—240V AC, 50/60 Hz / (1) USP RPS DC input

• Power Input Method: AC input

• Power Supply; AC/DC, internal, 660W

• Supported Voltage Range: 100—240V AC

• Management: Ethernet AR

• Weight: Without mounting brackets: 6.2 kg (13.7 lb) / With mounting brackets: 6.3 kg (13.9 lb)

• Enclosure Material: SGCC steel

• Mount Material: SGCC steel

• Supported Rack Depth: 600 - 1,200 mm  (23.6- 47.2" )

• LCM Display: 1.3" touchscreen

• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)

• Ambient Operating Humidity: 10 to 90% noncondensing

Etherlighting™

• Ethernet ✓

• SFP+  ✓

• NDAA Compliant ✓

Certifications

• CE, FCC, IC
