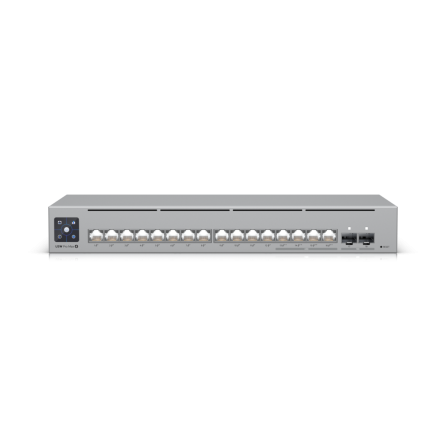

Ubiquiti USW-Pro-Max-16-PoE Switch (12) GbE PoE (4) 2.5 GbE PoE++ Ports 180W

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(4) 2.5 GbE PoE++ ports

(12) GbE PoE+ ports

(2) 10G SFP+ ports

180W total PoE availability

Versatile desktop, wall, and rack** mounting

Silent, fanless cooling system

Specifications:

Mechanical

• Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

• Weight: 2.1 kg (4.6 lb)

• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band

• Networking interface: (12) GbE RJ45 ports / (4) 1/2.5 GbE RJ45 ports / (2) 10G SFP+ ports

• PoE interface: (12) PoE/PoE+ (Pins 1, 2+; 3, 6-) / (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

• Total non-blocking throughput: 42 Gbps

• Switching capacity: 84 Gbps

• Forwarding rate: 62.496 Mpps

• Power method: DC adapter

• Power supply: 54V, 210W

• Max. power consumption: 30W (Excluding PoE output)

• Total available PoE: 180W

• Max. PoE wattage per port by PSE      PoE: 15.4W

PoE+: 30W

PoE++: 60W

• Voltage range PoE mode: PoE: 44—57V / PoE+/PoE++: 50—57V

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Ambient operating temperature: -5 to 40° C (23 to 104° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features  IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

Etherlighting™

Ethernet Locating

Speed/link

Native VLAN/network

SFP+ Locating

Speed/link

Native: VLAN/network
