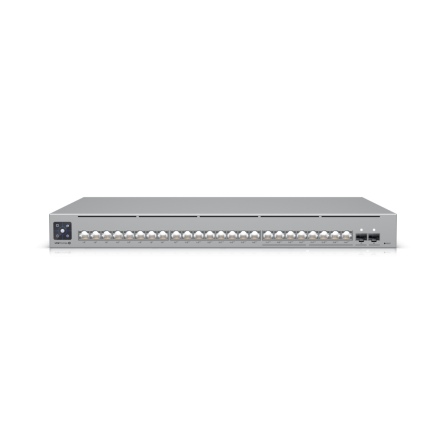

Ubiquiti USW-Pro-Max-24-PoE Swtich (8) 2.5GbE PoE++ (16) GbE 8 PoE++ 8 PoE+ 400W

24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

Specifications:

Mechanical

• Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

• Weight: Without mounting brackets: 5.1 kg (11.3 lb) / With mounting brackets: 5.2 kg (11.5 lb)

• Enclosure material SGCC steel

Hardware

• Management interface: Ethernet In-Band

• Networking interface:     (16) GbE RJ45 ports

(8) 1/2.5 GbE RJ45 ports

(2) 10G SFP+ ports

• PoE interface:  (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

• Total non-blocking throughput 56 Gbps

• Switching capacity 112 Gbps

• Forwarding rate 83.328 Mpps

• Power method (1) Universal input, 100—240V AC, 50/60 Hz / (1) USP-RPS DC input

• Power supply AC/DC, internal, 450W

• Supported voltage range 100—240V AC

• Max. power consumption 50W (Excluding PoE output)

• Total available PoE 400W

• Max. PoE wattage per port by PSE:     PoE: 15.4W / PoE+: 30W / PoE++: 60W

• Voltage range PoE mode PoE: 44—57V / PoE+: 50—57V

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Ambient operating temperature: -5 to 40° C (23 to 104° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features  IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features  DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

Etherlighting™

• Ethernet :      Locating

Speed/link

Native VLAN/network

• SFP+:   Locating

Speed/link

Native VLAN/network

LEDs

• System Status

• RPS Status
