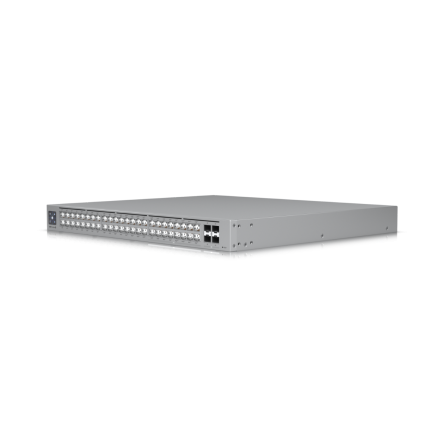

Ubiquiti USW-Pro-Max-48-PoE Switch (16) 2.5 GbE (32) Gbe 4) 10G SFP+ PoE Ports 720W

Mechanical

• Dimensions: 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")

• Weight: Without mounting brackets: 6.2 kg (13.7 lb)

• With mounting brackets: 6.3 kg (13.9 lb)

• Enclosure material: SGCC steel

Hardware

• Management interface: Ethernet In-Band

• Networking interface:     (32) GbE RJ45 ports

(16) 1/2.5 GbE RJ45 ports

(4) 10G SFP+ ports

• PoE interface:         (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)

 (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

• Total non-blocking throughput: 112 Gbps

• Switching capacity: 224 Gbps

• Forwarding rate: 166.656 Mpps

• Power method: (1) Universal input, 100—240V AC, 50/60 Hz / (1) USP-RPS DC input

• Power supply: AC/DC, internal, 820W

• Supported voltage range: 100—240V AC

• Max. power consumption: 100W (Excluding PoE output)

• Total available PoE: 720W

• Max. PoE wattage per port by PSE:     PoE: 15.4W

PoE+: 30W

PoE++: 60W

• Voltage range PoE mode: PoE: 44—57V / PoE+: 50—57V

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Ambient operating temperature: -5 to 40° C (23 to 104° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

Switching Features

• Layer 2 features  IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

• Layer 3 features:   DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

Etherlighting™

• Ethernet : Locating / Speed/link / Native VLAN/network

• SFP+: Locating / Speed/link / Native VLAN/network

LEDs

• System Status

• RPS Status
