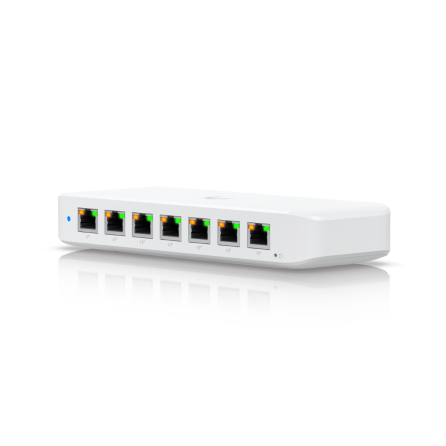

Ubiquiti USW-Ultra Switch (7) Gbe PoE+ (1) GbE PoE++ RJ45 PoE 42W

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

Specifications:

• Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3")

• Port Layout: 1 GbE RJ45 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)

• Max. PoE Output: Up to PoE+

• Total PoE Availability: PoE++ input: 42W

                                                 PoE+ input: 16W

                                                 60W PoE adapter input: 42W

                                                 60W AC adapter input: 52W

                                                 210W AC adapter input: 202

• Form Factor: Compact desktop, wall, magnetic

Performance

• Switching Capacity: 16 Gbps

• Total Non-Blocking Throughput: 8 Gbps

• Forwarding Rate: 12 Mpps

• Supported VLANs: 256

• MAC Address Table Size: 4,000

• Layer 2 Features: STP & RSTP           ✓

• Egress Rate Limit                                 ✓

• Flow Control                                         ✓

• Storm Control                                       ✓

• Multicast & Broadcast Rate Limiting ✓

• Port Isolation                                         ✓

• Port Mirroring                                        ✓

• Jumbo Frames                                        ✓

• Loop Protection                                     ✓

Hardware

• PoE Ports: PoE+: 7

• PoE++: 1

• Max. PoE Wattage per Port by PSE: PoE+ 30W

• Max. Power Consumption: 9W (Excluding PoE Output) with PoE input

• 8W (Excluding PoE Output) with adapter input

• 210W (Including PoE Output) with 210W AC adapter input

• Power Method: (1) AC/DC adapter (Included) / (1) PoE++

• Power Input Method: DC Input / PoE

• Power Supply: AC/DC, external, 210W

• Supported Voltage Range: 50—57V DC/PoE

• Management: Ethernet: Heat Dissipation (Excluding PoE Output): 30.708 BTU/hr / 27.296 BTU/hr

• Weight: Device: 320 g (11.3 oz)

                                       Wall mount: 45 g (1.6 oz)

                                      Adapter: 770 g (1.7 lb)

• Enclosure Material: Polycarbonate

• Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F)

                                                                                                210W AC adapter input: -20 to 60° C (-4 to 140° F)

• Ambient Operating Humidity: 10 to 90% noncondensing

• NDAA Compliant    ✓

Certifications

• CE, FCC, IC, Anatel
