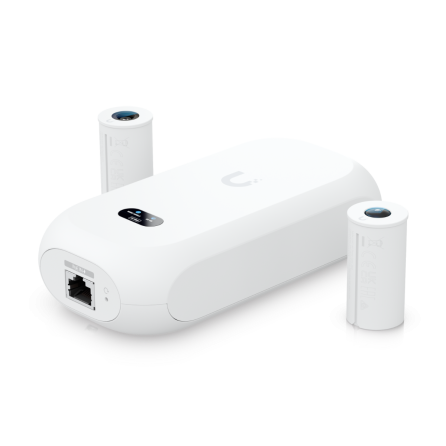

Ubiquiti UVC-AI-Theta Camera 9MP (4K) AI Theta PoE

A complete AI Theta system that discreetly secures any space while maintaining a warm and inviting atmosphere.

Specifications:

Mechanical

• Dimensions: UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)

 UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7”)

• Weight UVC-AI-Theta-Hub: 330 g (11.6 oz)

• UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)

• UVC-AI-Theta-Lens/360: 15 g (0.5 oz)

• UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)

• Enclosure materials UVC-AI-Theta-Hub: aluminum alloy

• UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate

• UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate

• Mount materials UVC-AI-Theta-Hub: aluminum alloy

• UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate

• UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate

• Cable jacket enclosure dimensions 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")

• Cable jacket enclosure material PVC

• Cable length 1 m (3.3 ft)

• Cable diameter 3.7 mm (0.15")

• Cable jacket material Woven fabric

• Cable weight 18 g (0.63 oz)

• Cable connector type Theta proprietary

Optics

• Sensor UVC-AI-Theta-Lens: 8MP CMOS sensor

• UVC-AI-Theta-Lens-360: 12MP CMOS sensor

• Lens Fixed focal length

• View angle UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°

• UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°

Video

• Video compression H.264

• Resolution UVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3)

• UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1)

• Max. frame rate UVC-AI-Theta-Lens: 24 FPS

• UVC-AI-Theta-Lens-360: 20 FPS

• Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

System

• Processor Quad-core Arm® Cortex®-A53 based chip

• Networking interface GbE RJ45 port

• Max. power consumption 12.5W

• Power method PoE

• Power supply 5V DC, 0.5A

• Supported voltage range 37—57V DC

• Output power 5V DC, 1A per port

• LED R/G/B/W

• Button Factory reset

• Mounting Wall, ceiling mount

• Operating temperature -20 to 40° C (-4 to 104o F)

• Operating humidity 10 to 90% noncondensing

• Certifications FCC, IC, CE

Audio

• Microphone Yes (Can be disabled)

• Speaker Yes

• Power supply 5V DC, 0.9A
